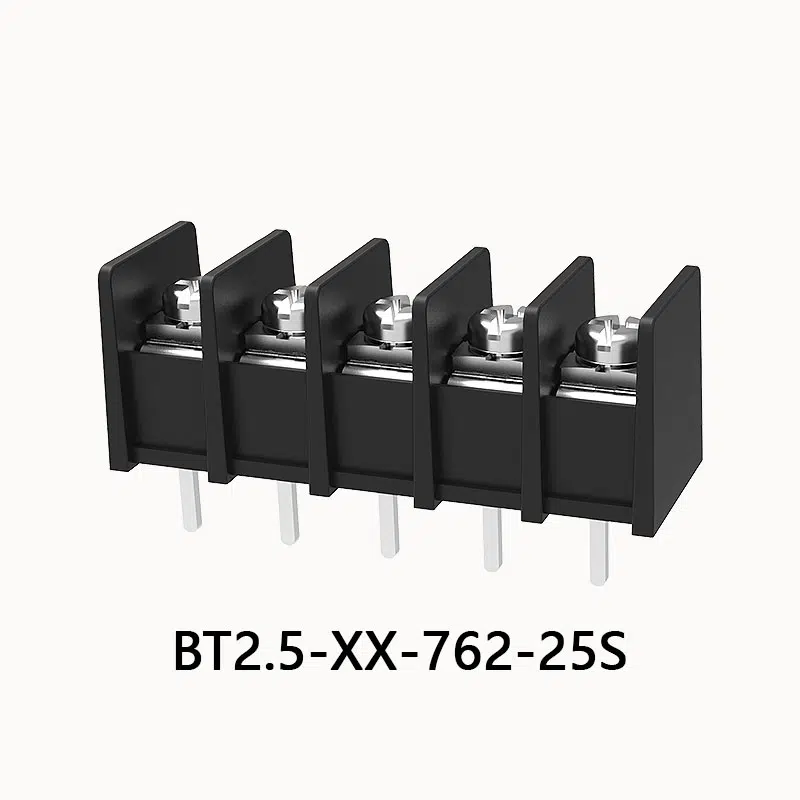

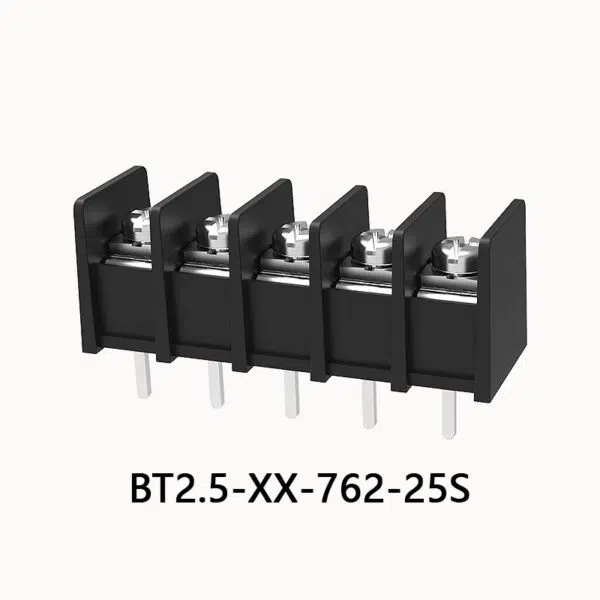

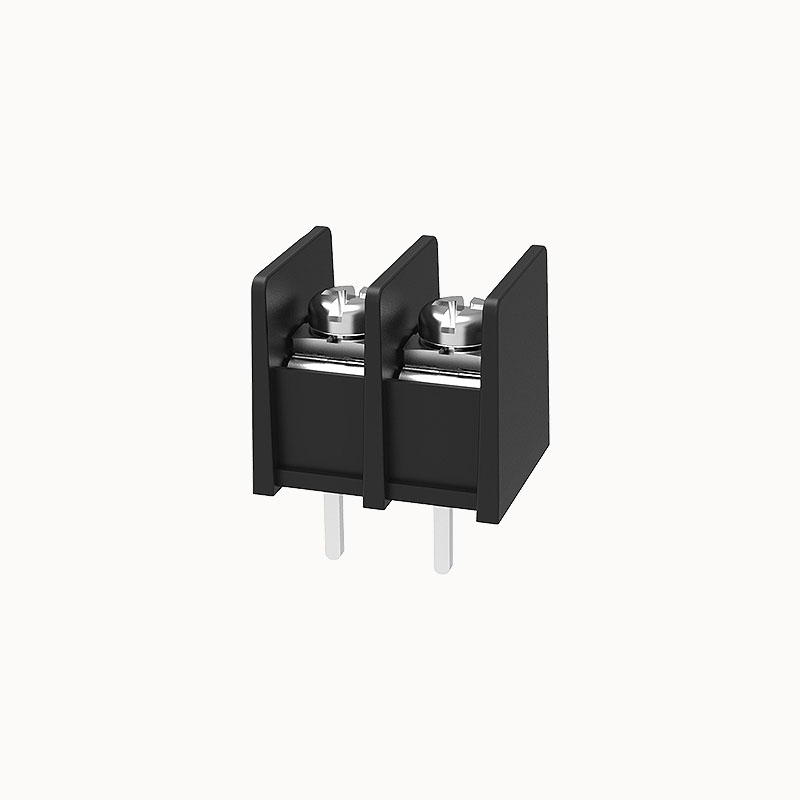

Mini Barrier Terminal Block | 7.62mm Pitch | BT2.5-XX-762-05S

Mini Barrier Terminal Block 7.62mm Pitch

Rated current:15A
Rated voltage (UL):300V
Cross section:22~14AWG
pitch:7.62mm

Add to quote

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

AWG 22~14AWG
Torque 0.5N.m





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A





Electrical parameters lEC

Rated current 24A





ltem properties

Type of installation PCB welding
Pin arrangement Single row in a straight line
Connection method Screw connection
Screwdriver slotted-phillips screwdriver
screw thread M3
Pitch 7.62mm
Number of potentials 2-12P
Pluggable or not no
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)

BT2.5-XX-762-05SAOSI-1.pdf
PDF Download
