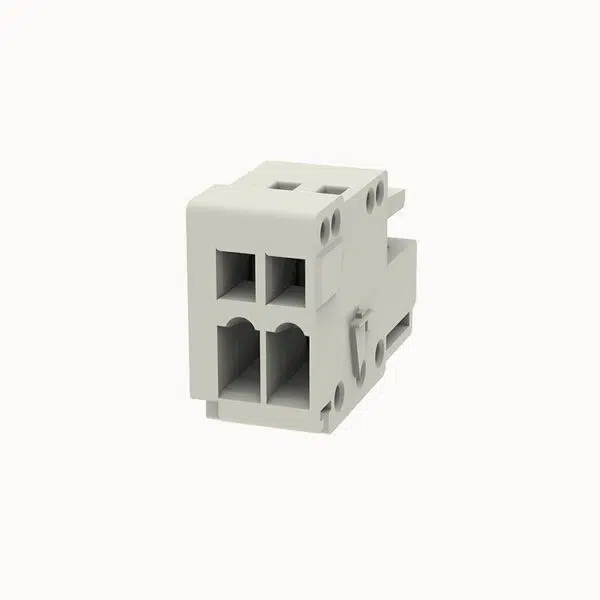

PCB Female Plug Connector | Compact 2.5 mm Pitch | FPC1-XX-250-22

PCB Female Plug Connector Compact 2.5 mm Pitch

Rated current:6A
Rated voltage (III/3):130V
pitch:2.5mm
Color:gray
Contact surface :Tin

Add to quote

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Conductor cross section solid 0.2~0.5mm²
Conductor cross section flexible 0.2~0.5mm²
AWG 28~20AWG
Strip length 6mm





Electrical parameters UL

Rated voltage (B) 150V
Rated voltage (C) 150V
Rated voltage (D) 150V
Rated current (B) 4A
Rated current (D) 4A
Rated current (C) 4A





Electrical parameters lEC

Rated voltage 130V
Rated voltage(III/3) 130V
Rated current 6A
Rated surge voltage(III/3) 2.5KV





ltem properties

Connection direction 0°
Connection method spring-cage connection
Pitch 2.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)

FPC1-XX-250-22AOSI.pdf
