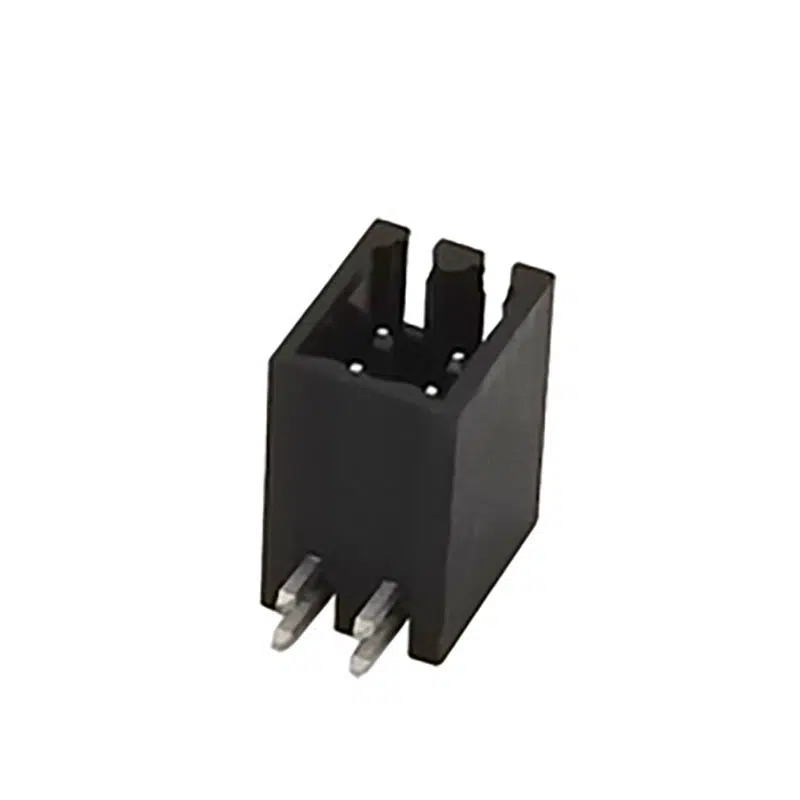

Plug-in Terminal Block replaces Degson | Dual-Row Solder Pins | FPH1.5-XX-350-28R

Plug in Terminal Block replaces Degson Dual Row Solder Pins

Rated current:8A.Rated voltage ???a???/2???:300V,Cross section:1.0mm?2,pitch:3.5mm,Color:black,Contact surface :Tin

Add to quote

Product certification

Pitch Option: 3.5mm

Angled shrouded header with right-angle design for low-profile board-edge connections.

Replacement Compatibility

  • General Type: 3.5mm pitch Shrouded Header (Angled)
  • Alternative Models: 15EDGRHD

Product Advantages

  • ☑ Angled (right-angle) orientation for creating low-profile connections.
  • ☑ Shrouded housing ensures a secure and properly aligned mating process.
  • ☑ A user-friendly and reliable choice for board-edge interfaces.

Application Scenarios

  • Communication equipment
  • Consumer electronics
  • Interface modules


Electrical parameters UL

Rated voltage (B) 150V
Rated current (B) 10A
Rated current (C) 10A
50A





Electrical parameters lEC

Rated voltage 200V
Rated voltage(III/3) 80V
Rated current 10A
Rated voltage(III/2) 200V
Rated voltage(II/2) 320V
Rated surge voltage(III/3) 2.5KV
Rated surge voltage(III/2) 2.5KV
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 0°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Pitch 3.5mm
Number of potentials 2-12P
Number of rows 2





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact zone metal surface tin-plated
Insulation Materials High temperature resistant materials
Shell color Black
Insulating material group Ⅲa
Flammability rating UL94V-0





Mechanical tests

Ambient temperature (operation) -30℃~120℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
04P 1.11
06P 1.53
08P 1.95
10P 2.37
12P 2.79
14P 3.21
16P 3.63
18P 4.05
20P 4.47
22P 4.89
24P 5.31
26P 5.72
28P 6.14
30P 6.56
32P 6.98
34P 7.4
36P 7.82
38P 8.24
40P 8.66
42P 9.08
44P 9.5
46P 9.92
48P 10.34
FPH1.5-XX-350-28RAOSI.pdf
PDF Download
