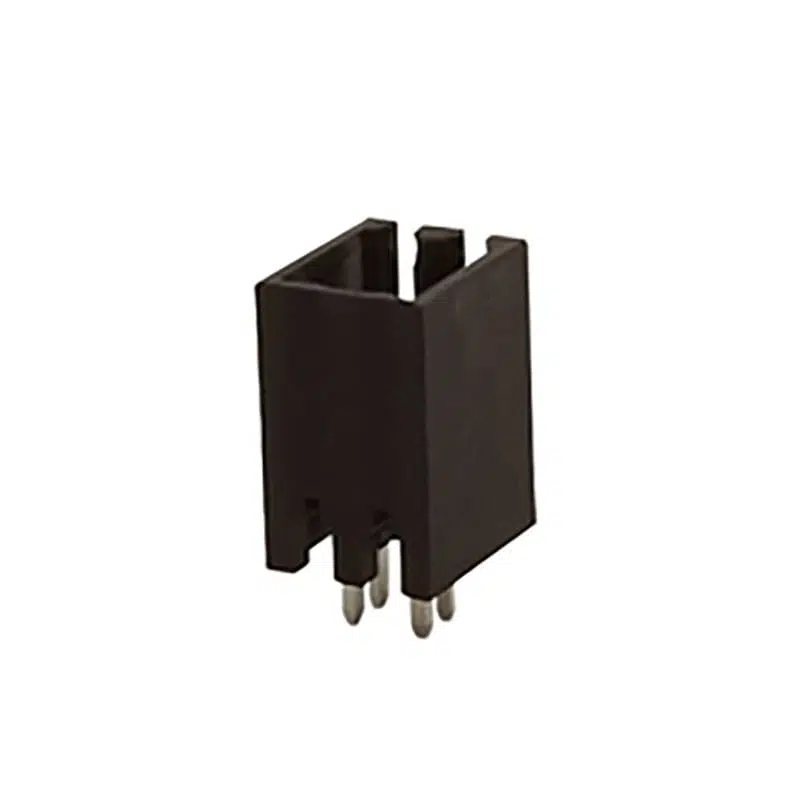

Pluggable Terminal Block | High-Density Pins, Factory Direct | FPH1.5-XX-350-28

Pluggable Terminal Block High Density Pins, Factory Direct

Rated current:8A.Rated voltage ???a???/2???:300V,Cross section:1.0mm?2,pitch:3.5mm,Color:black,Contact surface :Tin

Add to quote

Product certification

Replacement Compatibility

  • Functional Type: 3.5mm pitch Shrouded Header (Vertical)
  • Alternative Models: 15EDGVHD

Product Advantages

  • ☑ Shrouded design protects pins from being bent or damaged.
  • ☑ Guides the mating plug for a correct, non-reversed connection.
  • ☑ Standard choice for creating reliable pluggable systems.

Application Scenarios

  • General industrial electronics
  • Building management systems
  • Measurement and control technology


Electrical parameters UL

Rated voltage (B) 150V
Rated current (B) 10A
Rated current (C) 10A
50A





Electrical parameters lEC

Rated voltage 200V
Rated voltage(III/3) 80V
Rated current 10A
Rated voltage(III/2) 200V
Rated voltage(II/2) 320V
Rated surge voltage(III/3) 2.5KV
Rated surge voltage(III/2) 2.5KV
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 90°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Pitch 3.5mm
Number of potentials 2-12P
Number of rows 2





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact zone metal surface tin-plated
Insulation Materials High temperature resistant materials
Shell color Black
Insulating material group Ⅲa
Flammability rating UL94V-0





Mechanical tests

Ambient temperature (operation) -30℃~120℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
04P 1.08
06P 1.48
08P 1.88
10P 2.28
12P 2.69
14P 3.09
16P 3.49
18P 3.9
20P 4.3
22P 4.7
24P 5.11
26P 5.51
28P 5.91
30P 6.32
32P 6.72
34P 7.12
36P 7.53
38P 7.93
40P 8.33
42P 8.74
44P 9.14
46P 9.54
48P 9.95
FPH1.5-XX-350-28AOSI.pdf
PDF Download
Dual Row Plug-in Wire Terminal block

Dual Row Plug-in Terminal Block FPS1.5-XX-350-27

Pitch: 3.5mm Rated current: 8A Rated voltage：300V Wire range: 28-16 AWG Connection method: Push-in spring connection
