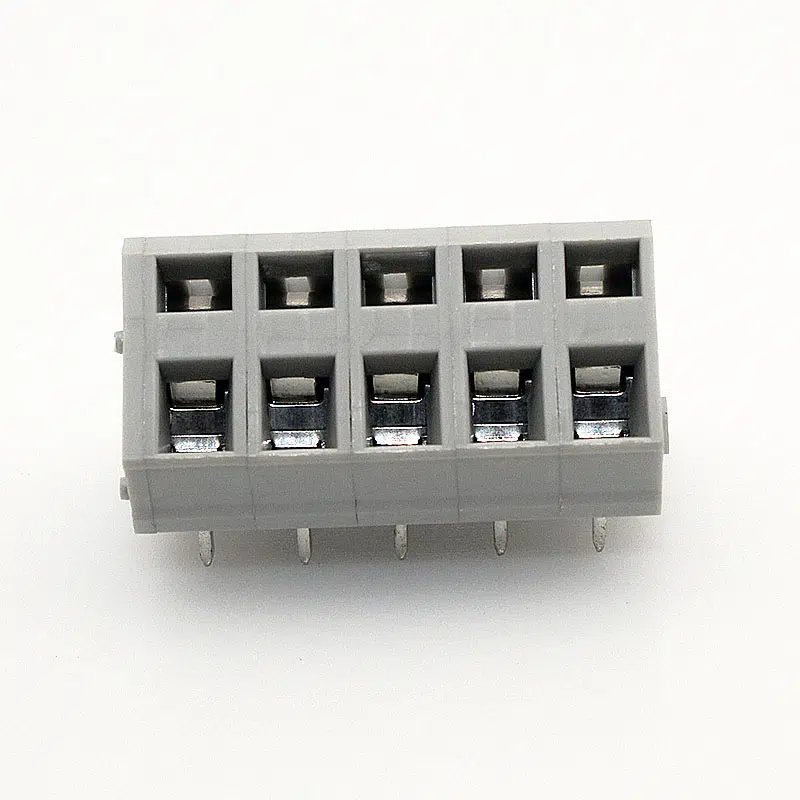

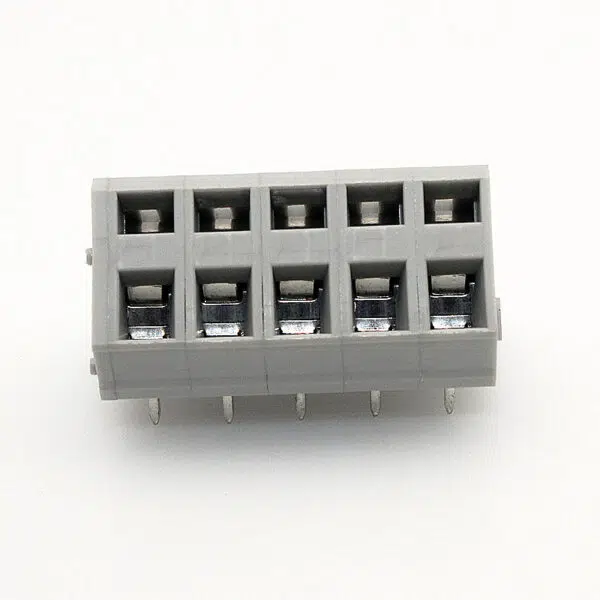

Push-in Spring Terminal Block

Push-in Spring Terminal Block High Contact Force Design

Rated current: 15A
Rated voltage: 300V
Wire range: 26-14AWG
Pitch: 5.0mm/5.08mm
Mounting: Wave soldering

Add to quote

Product certification

Replacement Compatibility

  • General Type: 5.0mm pitch Front-Entry Fixed PCB Spring Block
  • Alternative Models: DG245

Product Advantages

  • ☑ Designed to accept larger wire sizes (up to 2.5mm²) for higher current capacity.
  • ☑ Front-entry system where wire insertion and actuation are on the same side.
  • ☑ Provides a strong, reliable connection for power and signal wires.

Application Scenarios

  • Power electronics
  • Drive technology
  • Industrial equipment

Connection capacity

Conductor cross section solid 0.2~2.5mm²
Conductor cross section flexible 0.2~2.5mm²
AWG 28~12AWG
Strip length 6mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 1000V
Rated current 17A
Rated voltage(III/2) 1000V
Rated power frequency voltage(1min) 3.5KV





ltem properties

Connection direction 45°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Connection method spring-cage connection
Pitch 5mm
Number of potentials 2-24P
Pluggable or not no
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059/IEC60998





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
01P 1.04
02P 1.92
03P 2.8
04P 3.68
05P 4.56
06P 5.44
07P 6.32
08P 7.2
09P 8.08
10P 8.96
12P 10.72
13P 11.6
14P 12.48
15P 13.36
16P 14.24
17P 15.12
18P 16
20P 17.76
24P 21.28
26P 23.04
28P 24.8
34P 30.47
FS2.5-XX-500-04AOSI.pdf
PDF Download
PCB Terminal Block

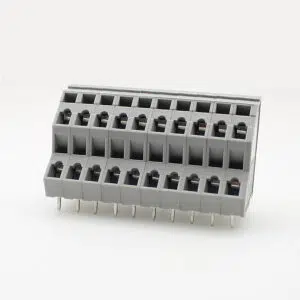

PCB Terminal Block | Double Row 5.0mm Pitch | FS2.5-XX-500-24
