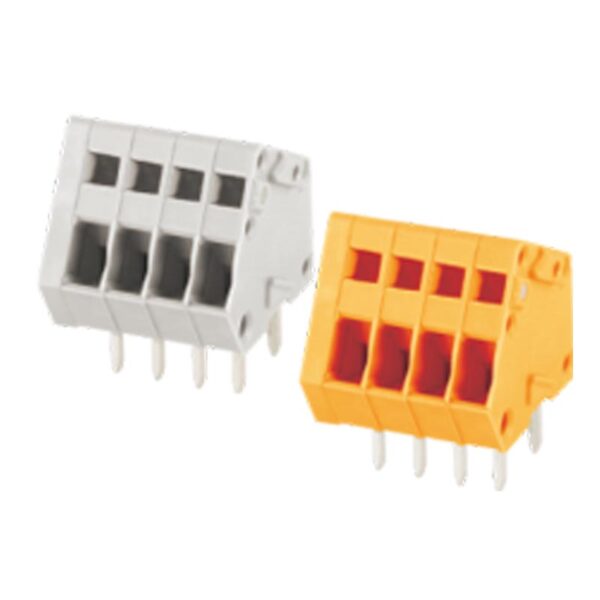

Push-in Terminal Block

Push in Terminal Block Factory Direct Fast Wiring Solution

rated current: 4A
Rated voltage: 150 V
Wire range: 28-20AWG
Pitch: 2.5mm
Mounting: Wave soldering

Add to quote

Product certification

Replacement Compatibility

  • Functional Type: 2.50/2.54mm Wire-to-Wire Splicing Connector
  • Alternative Models: DG240W

Product Advantages

  • ☑ Provides a fast, tool-free solution for splicing solid or stranded wires.
  • ☑ Compact design is ideal for use in junction boxes or tight spaces.
  • ☑ Push-button levers make connections and disconnections effortless.

Application Scenarios

  • Lighting installations
  • Building wiring
  • Electrical system maintenance

Connection capacity

Conductor cross section solid 0.2~0.5mm²
Conductor cross section flexible 0.2~0.5mm²
AWG 28~20AWG
Strip length 6mm







Electrical parameters UL

Rated voltage (B) 150V
Rated voltage (C) 150V
Rated voltage (D) 150V
Rated current (B) 4A
Rated current (D) 4A
Rated current (C) 4A





Electrical parameters lEC

Rated voltage 130V
Rated current 6A
Rated voltage(III/2) 130V
Rated power frequency voltage(1min) 1.25KV





ltem properties

Connection direction 45°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Connection method spring-cage connection
Pitch 2.5mm
Number of potentials 2-24P
Pluggable or not no
Number of rows 1







Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059/IEC60998





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
FS1-XX-250-05WAOSI.pdf
PDF Download
