Home  >  Terminal Blocks  >  Spring Terminal Block  >  FS1-XX-254-03

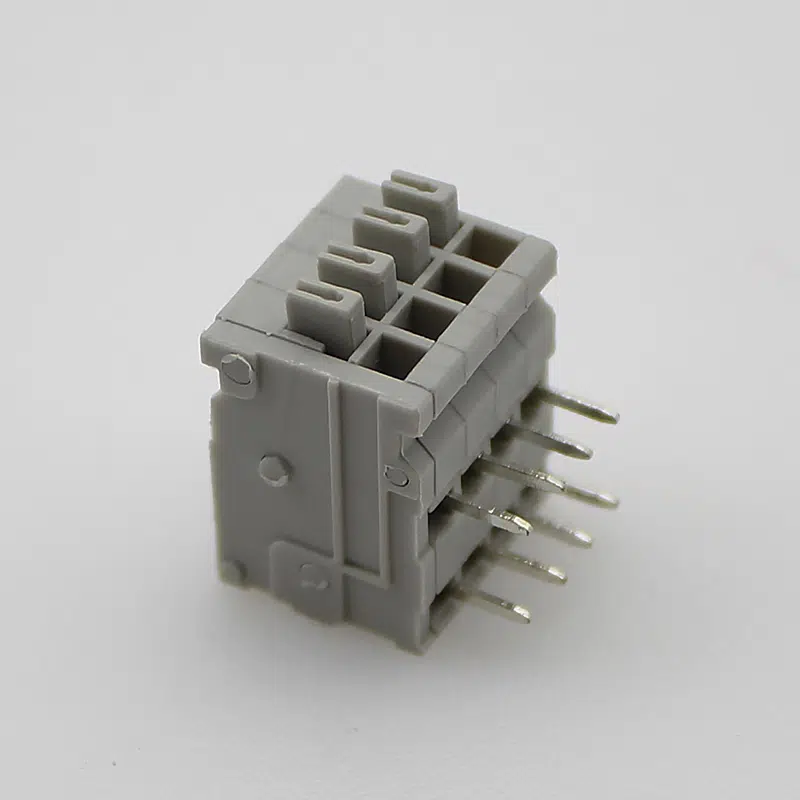

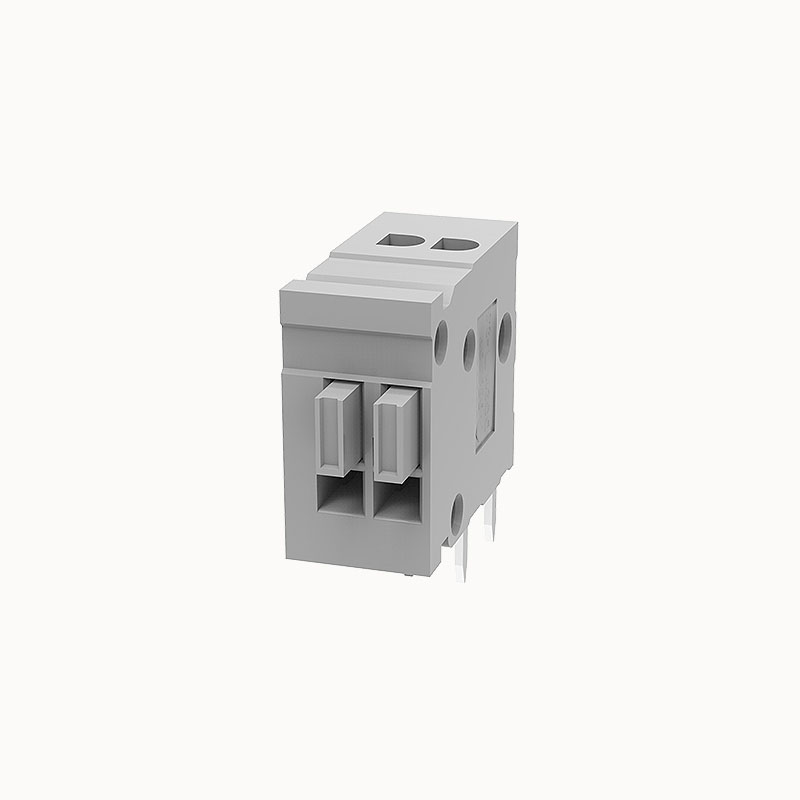

Push-in Terminal Block

Push in Terminal Block Compact Design High Contact Reliability

Rated current: 5 A
Rated voltage: 150 V
Wire range: 26-18 AWG
Pitch: 2.54mm
Mounting: Wave soldering

Add to quote

Product certification

Replacement Compatibility

  • Series Description: 2.54mm mini pitch Fixed PCB Spring Block (Angled Entry)

Product Advantages

  • ☑ Angled wire entry provides ergonomic and easy access for wiring.
  • ☑ Combines an ultra-compact footprint with user-friendly operation.
  • ☑ Secure spring connection ensures long-term reliability.

Application Scenarios

  • Consumer electronics
  • Lighting controls
  • Security systems

Connection capacity

Conductor cross section solid 0.2~1.0mm²
Conductor cross section flexible 0.2~1.0mm²
AWG 24~20AWG
Strip length 11mm





Electrical parameters UL

Rated voltage (B) 150V
Rated voltage (C) 150V
Rated voltage (D) 150V
Rated current (B) 2A
Rated current (D) 2A
Rated current (C) 2A





Electrical parameters lEC

Rated voltage 130V
Rated current 6A
Rated voltage(III/2) 130V
Rated power frequency voltage(1min) 1.25KV





ltem properties

Connection direction 0°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Connection method Push-in spring connection
Pitch 2.54mm
Number of potentials 2~24P
Pluggable or not no
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059/IEC60998





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
FS1-XX-254-03AOSI.pdf
PDF Download
