Home  >  Terminal Blocks  >  Pluggable Terminal Block  >  FPC2.5-XX-750-03
Tool-free Plug in Terminal Block | Factory Price Available | FPC2.5-XX-750-03

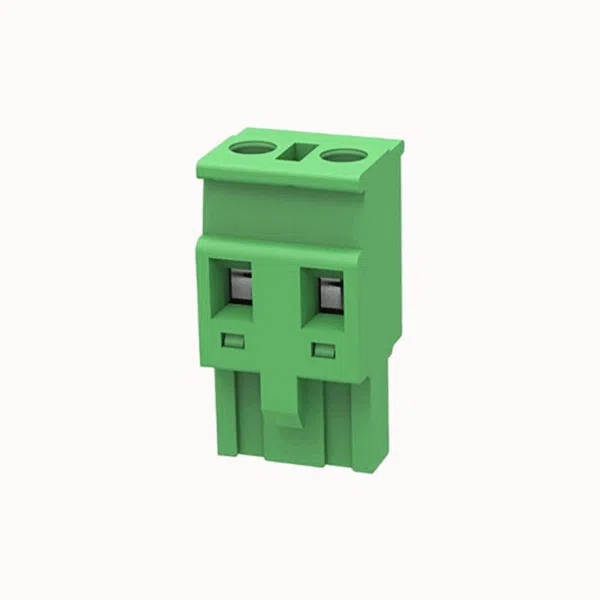

Tool-free Plug in Terminal Block Factory Price Available

,Rated current:15A.
Rated voltage (III/2):300V,
pitch:7.5mm,
Color:green,
Contact surface :Tin

Add to quote

Product certification

Replacement Compatibility

  • Functional Type: 7.50/7.62mm double-level pluggable power series
  • Alternative Models: Dinkle 3ESDP

Product Advantages

  • ☑ Double-level design provides high connection density for power circuits.
  • ☑ Saves significant board space compared to single-level connectors with the same pole count.
  • ☑ Large pitch accommodates higher power and voltage requirements.

Application Scenarios

  • Power distribution in compact cabinets
  • Building automation systems
  • High-density I/O power links

Connection capacity

Conductor cross section solid 1.0~2.5mm²
Conductor cross section flexible 1.0~2.5mm²
AWG 30~12AWG
Torque 0.4N.m
Strip length 6mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 20A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 250V
Rated current 18A
Rated voltage(III/2) 250V
Rated surge voltage(III/2) 2KV





ltem properties

Connection direction 90°
Type of installation PCB welding
Pin arrangement Single row in a straight line
Connection method Screw connection
Screwdriver Slotted screwdriver
screw thread M2.5
Pitch 7.5mm
Number of potentials 2-12P
Pluggable or not no
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059/IEC60998





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
03P 6.641
04P 8.472
05P 10.339
06P 15.216
08P 17.324
FPC2.5-XX-750-03AOSI.pdf
PDF Download
