With the growing demand for security, CCTV systems have become a vital part of protecting homes, businesses, and public spaces. However, as the number of security cameras increases, many users encounter issues such as unstable images, voltage drops, or even complete system shutdowns. The root cause is often insufficient or poorly managed power distribution.
This is where the 12V CCTV fuse box becomes essential. By combining centralized power distribution with independent protection, it ensures that CCTV systems remain reliable, safe, and easy to maintain.
Part 1: What type of power supply is best for CCTV?
When choosing the right power supply for CCTV, it is important to understand how different types of power sources work, how they deliver electricity to cameras, and what power capacity they need to support a system.
AC Power Supply
- What it is: Standard mains in homes/factories. Ideal as the upstream source because high voltage travels long distances with less loss.
- How it’s used in CCTV: Cameras don’t run on high-voltage AC. Mains first goes through an adapter/transformer to 12V DC, then that DC is split to each camera.
- Sizing example: For 8–16 cameras, plan ≥10–20 A @ 12V DC on the adapter so every channel has headroom.
- When to use: Sites with stable mains and centralized power rooms.
DC Power Supply
- What it is: The most direct way to power CCTV. Common rails: 5V, 12V, 24V; cameras mostly use 12V DC.
- Loads: A camera is ~5–12 W (≈ 0.5–1 A @ 12V).
- Sizing examples:
4 cams → ~12V 5A
8–16 cams → ≥10–20A @ 12V
Why it works well: Centralized DC keeps voltage stable over short/medium runs. Pairing with a 12V fuse/distribution box gives per-channel protection, clean labeling, and quick maintenance.
Battery & UPS Backup
- Purpose: Keep cameras online during outages. Typical rails: 12V/24V DC.
- How it works: Battery/UPS stays charged, then auto-switches to supply mode on loss of mains.
- Run-time example: 12V 40Ah ≈ eight 1A cameras for ~5 hours. For 8–16 cams over longer outages, consider UPS 500–1000 VA or 12V 30–50Ah batteries.
- Use when: Uninterrupted monitoring is critical (gates, warehouses, remote sites).
Adjustable Power Supply
- What it is: Lab supply with variable output (often 0–30V DC), adjustable current limit.
- CCTV use: Great for testing/troubleshooting—set 12V DC and power cameras on the bench.
- Limits: A small unit (e.g., 12V 5A) handles only a few cams; 8 cams need ≥10A. Rarely used as a permanent field supply.
Power over Ethernet (PoE)
What it is: Sends power and data on one Ethernet cable (Cat5e/Cat6), simplifying installs. The switch/injector feeds ~48V DC, and the camera steps it down internally.
Standards & budgets:
802.3af → up to 15.4 W/port (standard IP cams)
802.3at (PoE+) → 30 W/port
802.3bt → 60–90 W/port (high-power PTZ)
Example: A 120 W PoE switch can run about eight 15 W cameras (allow margin).
Part 2: Why a 12V CCTV Fuse Box Matters?
In CCTV systems with multiple cameras, wiring all devices in parallel to a single power source often creates problems. The cabling becomes messy, voltage drop in DC circuits is more severe over long distances, and even minor faults may cause the entire system to shut down.

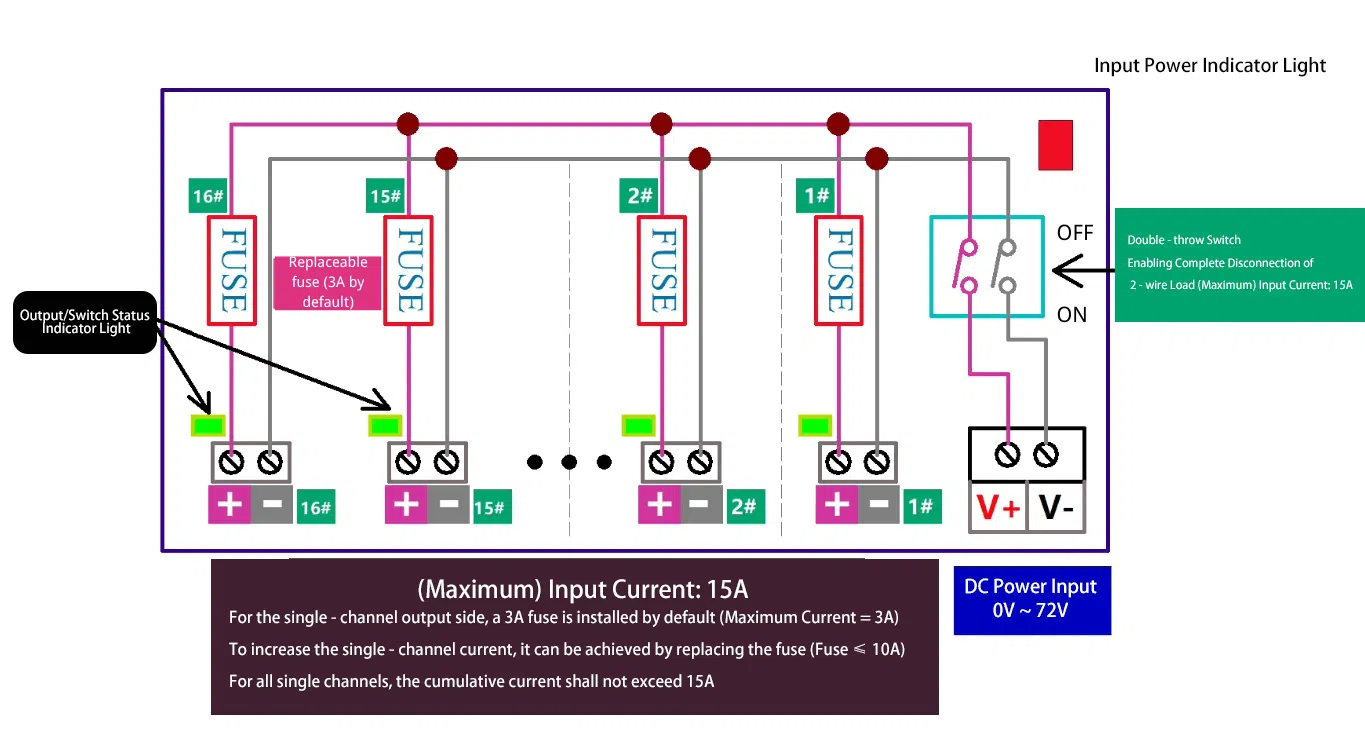

A 12V DC fuse box addresses these issues by centralizing power distribution. It takes one 12V input and splits it into multiple outputs — commonly 4, 6, 8 channels — to match different system sizes. This ensures every camera receives stable power.
Maintenance is also simplified. Many fuse boxes come with LED indicators. A green light shows normal operation, while a failed line is immediately visible when its light goes out. This design makes fault location quick and reduces downtime, saving time and cost for technicians.
Installation is another area where the 12V CCTV fuse box shows clear advantages. Currently, there are two common types available on the market:
Tool-free press-fit design: Simply press the cable into place with a finger, eliminating the need for screwdrivers or other tools. This greatly reduces installation time while ensuring secure and stable connections, making it especially suitable for rapid deployment in large-scale surveillance projects.

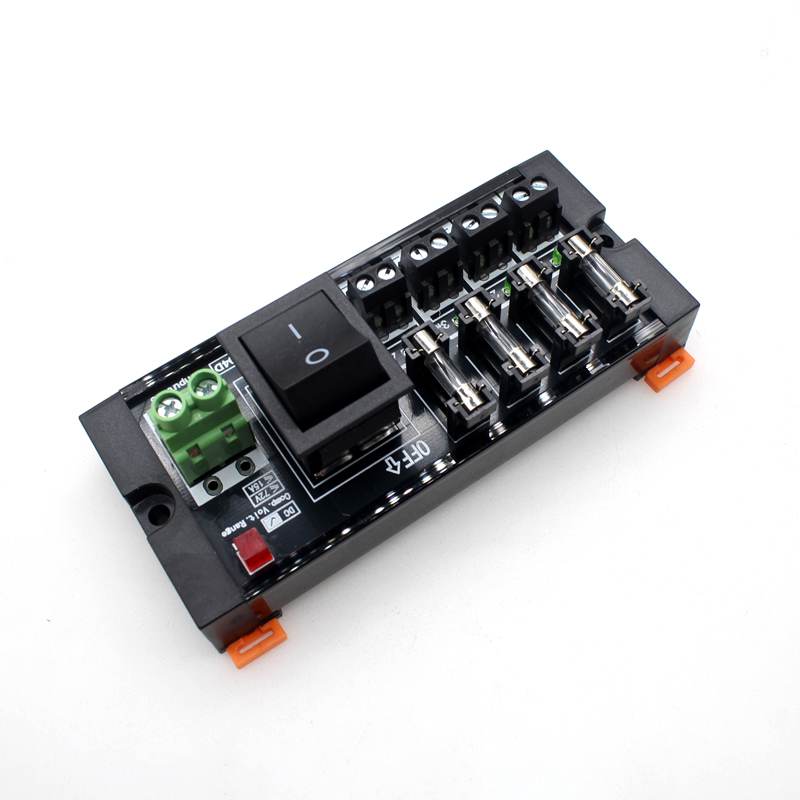

Screw-type design: Uses traditional screw terminals, providing a tighter and more durable mechanical connection. This prevents loosening caused by vibration or long-term use, making it ideal for applications where long-term stability is critical.
Both types can meet the installation needs of different CCTV scenarios, ensuring efficiency during setup while maintaining reliable system performance.
In short:
12V CCTV fuse box = the optimal centralized power supply solution.
It elevates simple 12V power into a safer, more efficient, and easier-to-maintain professional distribution system. From home security and retail shops to factories and large public monitoring projects, this device ensures a stable and reliable foundation for CCTV power management.
Part 3: How Does a CCTV Power Supply Work?
A CCTV power supply converts high-voltage AC power into low-voltage DC suitable for cameras. The process involves:
- Conversion: AC 110V/220V is stepped down and rectified into DC, typically 12V.
- Regulation: Voltage is stabilized to match camera requirements.
- Distribution: Power is sent through cables to each connected device.
- Protection: Integrated safety features (fuses or PTC resettable fuses) prevent short circuits or overload damage.
When paired with a 12V CCTV fuse box, this system becomes even more robust — offering centralized distribution, independent protection, and easier troubleshooting.
Part 4: Does DC voltage drop over distance?
In CCTV systems, power transmission distance is always critical. Because cables have resistance, DC voltage drops more over long distances than AC, which explains why distant cameras may reboot or fail to start.
For 12V DC, the distance depends on cable size and load. With 18/2 cable, a single camera works reliably within 30–50 meters, but voltage drop increases beyond that. It’s important to note that video range differs from power range. Analog CCTV video runs 200–300 meters, PoE IP cameras up to 100 meters, but power delivery is usually shorter.
Therefore, powering multiple cameras from one 12V line is not practical. The best solution is a 12V DC supply with a 12V CCTV fuse box, which centralizes distribution, adds independent protection, reduces voltage drop, and improves safety and maintenance.
👉Learn more: Southwire — Voltage Drop Calculator
A1: The biggest advantage is centralized power distribution with independent protection. Instead of using separate adapters for each camera, a fuse box supplies stable 12V power to multiple cameras while giving each channel its own fuse or breaker. This improves safety, simplifies wiring, and makes troubleshooting easier.
A2: Each camera channel has its own fuse. If one camera shorts or overloads, only that channel is cut off without affecting the whole system.
A3: Voltage: 12V DC (some support 24V). Current: About 1–3A per channel, with total capacity 5A–30A+ depending on channels.
A4: Yes. Multi-channel fuse boxes (4, 6，8 channels) make it easy to add more cameras without messy wiring or multiple adapters. We also support customized designs, such as higher current capacity, different channel numbers.
A5: Because it allows centralized management of power supply while giving each camera independent circuit protection. It also keeps wiring cleaner, reduces clutter, and makes troubleshooting or future upgrades much easier.
Conclusion
Choosing the right power supply is essential for a stable and reliable CCTV system. While a 12V DC power source delivers the energy, the 12V CCTV fuse box ensures safe, efficient, and stable distribution.
By combining centralized supply with independent fuse protection, it reduces wiring clutter, prevents overload, and simplifies maintenance. Whether for homes, offices, or commercial security projects, the 12V CCTV fuse box is the key to building a dependable surveillance power solution.
