In modern electrical systems, power distribution is not only about supplying electricity but also ensuring safety, efficiency, and easy maintenance. This is where compact power distribution with main switch plays an essential role. By integrating switching, protection, and distribution into a single unit, it provides a reliable foundation for both residential and industrial applications.
Part 1: What Is a Power Distribution Switch?
A power distribution switch is a key component in electrical systems, responsible for controlling and isolating power across multiple circuits. Unlike ordinary switches, it can withstand higher currents and ensures safe power management. In compact power distribution with main switch, this function is integrated into a single unit, combining control, protection, and distribution.
Common forms of distribution switches include:
- Isolator Switch: Used to disconnect power and provide safe isolation, but without overcurrent protection.
- Load Break Switch: Designed to safely open and close circuits under load, with limited breaking capacity.
- Circuit Breakers with Switching Function (e.g., MCBs/MCCBs): Function both as switches and as protection devices against overloads and short circuits.
Building on this, the main switch is the highest-level distribution switch within a board, located at the supply entry. It can disconnect or control the entire unit with a single action, including emergency shutdowns. Depending on design, the main switch may be a main isolator (no protection) or a main breaker (with full protection).
In compact power distribution with main switch, the main switch is integrated with branch protection and busbar distribution into a single enclosure, achieving a more space-efficient, reliable, and safer distribution solution.
👉 Reference: IEC 60947 Low-voltage switchgear and controlgear
Part 2: Main Switch vs Other Protection Devices
| Item | Main Switch | Consumer Unit | Main Isolator | Distribution Board | Main Breaker |
| Definition | The overall control switch of the system, used to connect or disconnect power | An integrated unit with main switch plus MCBs/RCDs | A switch for isolation only, without overcurrent protection | A box containing busbars, protective devices, and enclosure | The main breaker with overload/short-circuit protection |
| Main Function | Controls and isolates the entire electrical system | Distributes electricity to branch circuits with protection | Provides safe isolation for maintenance | Centralized distribution of power to circuits | Controls power and protects against overload/short circuits |
| Protection | Not always; may be isolator only or breaker with protection | Includes full protection (MCBs, RCDs, SPDs) | No overcurrent protection, isolation only | Depends on internal devices (MCBs/RCDs) | Includes overload and short-circuit protection |
| Application | Main entry control of distribution system | Residential and small commercial systems | Places requiring safe disconnection | Distribution points in residential, commercial, and industrial | Industrial, commercial, and high-power systems |
| Typical Location | At the supply entry of the distribution board | Household electrical cabinet | Main incoming line, power entry | Building floors or sections | Distributionboard or main supply entry |
| Example | Household main switch, industrial cabinet switch | Household consumer unit | Isolator in homes or factories | Distribution boards in buildings/factories | MCCBs, main protective breakers |
In modern electrical and security systems, choosing the right solution depends on the application. For residential and small commercial needs, a consumer unit may be sufficient, while industrial systems often require a main breaker or full distribution board. However, for space-saving and efficient installations, especially in surveillance system power distribution, a compact power distribution with main switch provides an integrated approach—combining central control, branch protection, and reliable monitoring in one unit.
👉 Reference: NEC National Electrical Code Standards
Part 3: Which One Combines Both Main Switch and Distribution Fuse Board?
A fuse box is one of the most classic and practical forms of a distribution box. Its key feature lies in using fuses instead of circuit breakers to protect circuits. A typical fuse board usually contains both fuses (either replaceable or one-time cartridges) and a main switch. When an overload occurs, the fuse element melts and automatically cuts off the power, thereby ensuring circuit safety.
This simple yet reliable design has been in use for decades. However, as modern electrical systems demand higher levels of safety, efficiency, and compactness, a more integrated solution has emerged—Compact Power Distribution with Main Switch.
By combining the main switch with fuse protection in a single compact unit, it not only improves space utilization but also enables centralized management. At the same time, its modular design reduces installation complexity and maintenance costs, minimizing downtime risks.
Therefore, the importance of compact power distribution with main switch lies in its ability to preserve the safety and reliability of traditional fuse boards while meeting today’s needs for efficiency, space-saving, and easier maintenance. It has become an essential solution in modern residential, industrial, and security applications.
Part 4: How to Select A Distribution Board?
Choosing the right distribution box is crucial. It not only determines whether the electrical system can operate stably but also directly impacts the safety and lifespan of the equipment. If the wrong box is selected, it may lead to uneven power distribution, complex maintenance, or even serious risks such as electric shock and fire. Therefore, the following key factors should be considered when making a selection:
- Capacity and Voltage Requirements— The distribution box must match the actual load and voltage level to ensure stable power supply. It is also essential to confirm compatibility with your electrical system specifications to avoid mismatches and potential hazards.
- Durability— The enclosure should be made of high-quality materials, such as flame-retardant engineering plastics or metal alloys, capable of withstanding high temperatures, humidity, and mechanical stress, ensuring long-term reliability.
- Application Scenarios— The requirements for residential, industrial, and security systems vary significantly. The choice should be based on your specific needs and installation environment.
- Portability and Size— For temporary events or compact spaces, portability and compactness are critical. In such cases, compact power distribution with main switch provides clear advantages, saving installation space and time while simplifying maintenance.
- Compliance with Standards— Always ensure the product meets international certifications such as IEC, UL, or CE to guarantee safety and regulatory compliance.
- Safety— This is the most critical factor. A reliable distribution box should include overload and short-circuit protection, as well as clear fault indication. Traditional fuse boards rely on fuses, while modern solutions integrate the main switch with independent channel protection, offering greater safety and efficiency.

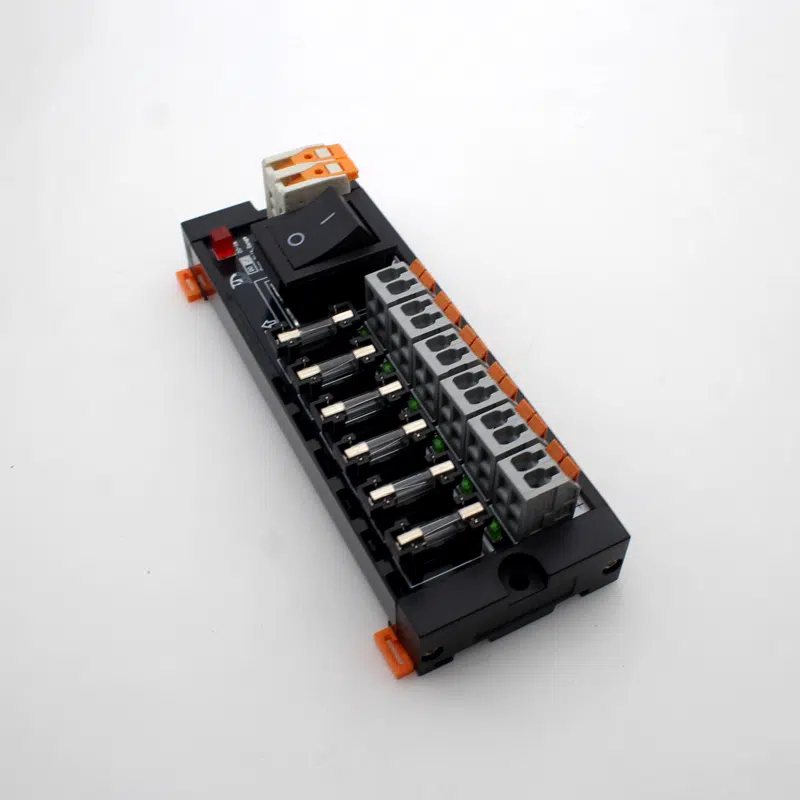

A typical application example is the 12V DC Fuse Distribution Module. It not only serves as a compact power distribution solution in limited spaces but, thanks to its low-voltage design, is also widely applied in surveillance system power distribution. By converting a single 12V DC input into multiple outputs (4, 6, 8, 12, or 16 channels), each equipped with an independent fuse, it ensures that when one camera line experiences a fault or overload, only that line is disconnected while the rest of the system continues operating normally. This greatly enhances the safety and reliability of CCTV and other low-voltage systems. In this sense, it can be considered a modern extension of the traditional fuse board, making it especially well-suited for low-voltage and security applications.
With this integration of safety, efficiency, and compact design, the 12V DC Fuse Distribution Module highlights why compact power distribution with main switch is becoming the preferred solution for modern surveillance and low-voltage systems.
Conclusion
In summary, from traditional fuse boards to modern compact power distribution with main switch, distribution methods have continued to evolve. For low-voltage systems seeking long-term safety and reliability, adopting compact power distribution with main switch is no longer optional but the foundation of a modern and dependable power solution.
FAQ: Compact Power Distribution with Main Switch
A1: It is an integrated unit that combines a main switch, protection devices, and power distribution in one compact enclosure, saving space and improving safety.
A2: A fuse board relies on replaceable fuses for protection, while modern modules integrate main switches and independent fuse protection, offering easier maintenance and higher efficiency.
A3: The right box ensures stable operation, safety, and long service life. Wrong selection may lead to uneven power distribution, system failure, or even fire risks.
A4: It centralizes 12V DC input into multiple outputs, each with an independent fuse. A fault in one line does not affect the rest, improving CCTV system reliability.
A5: Check for stable video signals, measure output voltage (11.5V–12.5V), verify load performance, and use fuse box LED indicators to quickly spot faults.
