Power distribution plays a vital role in modern electrical and electronic systems. Traditional solutions such as AC power distribution blocks and miniature circuit breakers (MCBs) are widely used, but they are not always the most efficient choice for low-voltage DC projects. AC blocks are designed for high-voltage applications, while MCBs are bulky and costly when handling multiple small-current channels.
This article compares these conventional methods, highlights their limitations, and introduces the DC power fuse distribution strip module as a compact, cost-effective solution with independent fuse protection. We will also explain fuse basics and discuss customization options for different project needs.
Part 1 An Introduction to AC Power Distribution Blocks

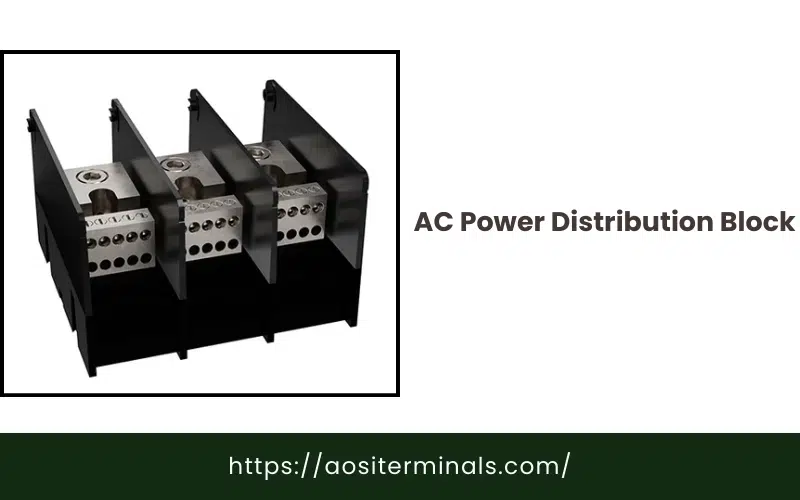

What is an AC Power Distribution Block?
An AC power distribution block is an economical and convenient device used to distribute electrical circuits from a single input source to multiple branch circuits. It reduces wiring complexity inside panels, saving both time and cost.
How Does It Work?
The block operates by providing a central terminal or bus bar for the incoming AC source, which is then evenly distributed to several output terminals. This ensures safe and efficient delivery of power to connected equipment.
Key Features and Limitations
Known for their reliability, AC distribution blocks are widely applied in industrial, commercial, and residential systems. However, they are not ideal for low-voltage DC applications. Designed primarily for high-voltage AC systems, they also lack independent protection for each channel, meaning a fault in one line can impact the entire circuit.
Part 2 Brief Overview about Miniature Circuit Breaker

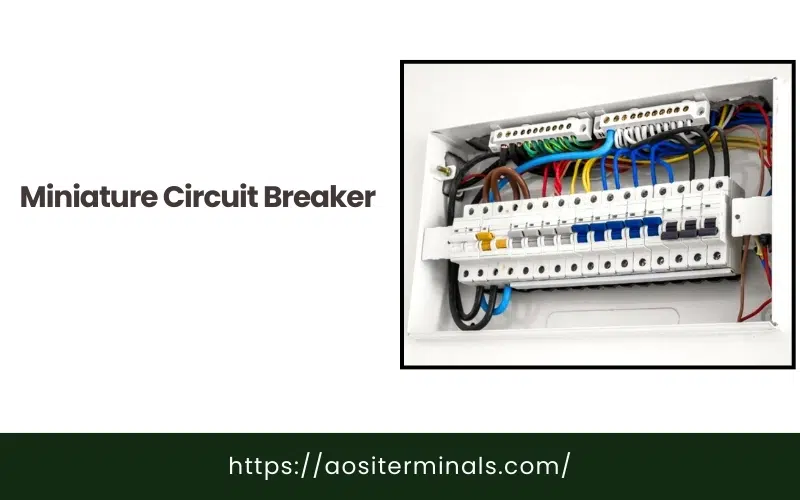

What is a Miniature Circuit Breaker?
An MCB (Miniature Circuit Breaker) is an automatically operated electrical switch designed to protect circuits from damage caused by excess current. It works by tripping whenever an overload or short circuit occurs, interrupting the current flow to prevent equipment failure and electrical hazards.
According to IEC 60898-1, MCBs are specifically designed to trip automatically under overload and short-circuit conditions, ensuring standardized performance and safety across applications.
How Does It Work and What Are Its Features?
MCBs are reusable and provide reliable protection. They are widely applied in residential, commercial, and industrial systems. Their ability to quickly isolate faulty circuits makes them a safe and convenient choice compared with traditional fuses.
Limitations of MCBs
Despite their benefits, MCBs are more expensive than fuses, making them less economical for simple setups. They also have limited breaking capacity, and in systems with high fault currents, they may trip repeatedly or even fail.
Part 3 DC Power Fuse Distribution Strip Module: Definition and Advantages
A DC power fuse distribution strip module is a compact device designed to distribute direct current from a single input source to multiple outputs, with each output line protected by its own fuse. This ensures efficient and reliable management of power in low-voltage DC systems.
Key advantages include:
- Independent circuit protection: If one line experiences a short circuit, only that fuse will blow, while other circuits continue operating normally.
- Compact and economical design: Saves installation space and reduces overall cost compared with MCBs or AC distribution blocks.
- Ideal for small to medium current distribution: Perfect for CCTV systems, automation, and DIY electronics projects.
Part 4 The Role of Fuses in Protection of Our DC Power Fuse Distribution Strip Module
A fuse is one of the most basic and widely used safety devices in electrical systems. It is designed to protect a circuit from overcurrent or short circuits by melting and disconnecting the line once the current exceeds a specified value. This simple yet effective mechanism prevents overheating, minimizes fire risk, and safeguards equipment and users from electrical hazards.
Different types of fuses exist for various applications:
- HRC fuses: Commonly used in low-voltage networks where high fault currents may occur.
- Line fuses: Installed at feeder taps to isolate faults locally without shutting down the entire system.
- Cartridge fuses: Our DC power fuse distribution strip module uses compact cartridge fuses, which are ideal for low-voltage DC applications. They provide reliable protection for each channel while keeping the design small, cost-effective, and easy to maintain.
Customization for Project Needs
Our DC power fuse distribution strip module can be equipped with fuses of different rated currents according to project requirements. Whether your system demands 5A, 10A, or higher ratings, we can provide customized solutions to ensure optimal safety and performance for your specific applications.
Part 5 FAQ: Why Choose DC Power Fuse Distribution Strip Module
A1: A DC power fuse distribution strip module distributes current from one input to multiple outputs. Each channel is protected by an independent fuse, so if one circuit fails, only that fuse blows while others continue operating normally.
A2: Cartridge fuses are compact, low-cost, and easy to replace. They provide reliable overcurrent protection, making them ideal for small to medium current DC applications where safety, efficiency, and space-saving are key requirements.
A3: Unlike AC distribution blocks, this module offers independent protection for each channel. Compared with MCBs, it is smaller, more economical, and better suited for low-voltage DC systems, ensuring efficient and uninterrupted operation.
A4: Yes. Fuse ratings can be tailored to project requirements, such as 5A, 10A, or higher values. This flexibility ensures compatibility with various devices and provides optimal safety for different system designs.
A5: They are widely used in CCTV systems, small automation projects, renewable energy setups, DIY electronics, and other low-voltage DC applications where compact design and cost-effective, reliable circuit protection are essential.
Conclusion
AC power distribution blocks and MCBs are effective in certain systems but less suited for low-voltage DC projects. The DC power fuse distribution strip module provides a compact, economical alternative with independent cartridge fuse protection on each channel. This ensures continued operation even if one line fails, while offering customizable fuse ratings to meet project needs.
Contact us to discuss your project requirements and discover how our solutions can support your systems.
