Worried about wired cameras being stolen? Afraid that home security cameras might be hacked? When using hidden cameras, which power source is the safest choice? These are common concerns we often face when relying on surveillance systems to protect our homes, offices, or commercial spaces.
However, security is not determined solely by the type of camera you choose. A reliable surveillance system must also depend on stable and efficient surveillance system power distribution. Without proper power design, even the most advanced cameras cannot guarantee continuous and stable monitoring.
👉Learn more：IEC 62368-1 Safety Standard
If power distribution is not properly planned, a range of problems may occur: cameras may frequently reboot, video feeds may become unstable, and in the worst case, a single failure could cause the entire system to shut down. This makes power planning just as important as selecting the right camera equipment.
Part 1：How are surveillance cameras powered?
In surveillance systems, the choice of power supply directly affects stability and maintenance. The three most common methods are:
1. Individual Adapters (Decentralized Power)
In this mode, each camera is powered by its own adapter, and a failure in one adapter will not affect the others. This method is commonly used in small-scale surveillance systems.
Advantages： Easy to install, with each camera powered independently, requiring no complex distribution design. Independent power also makes replacement or repair more convenient.
Disadvantages: In large surveillance systems, relying on multiple adapters results in messy wiring, complex maintenance, and unstable voltage. In addition, the overall cost of this approach is often higher than that of a centralized power supply with the same capacity.
2. Centralized 12V DC Power Supply
Centralized power supply means that a single power unit provides electricity for multiple cameras, which is then distributed through a distribution box or fuse module. This method is commonly used in medium to large surveillance systems.
Process: The power unit outputs 12V DC, which is allocated to each channel via a surveillance system power distribution module, ensuring stable power for every camera.
Advantages: Centralized power management ensures cleaner wiring. With proper surveillance system power distribution, multiple channels can be supplied efficiently, making maintenance easier. Although it requires more cabling compared to decentralized power, the cost is lower overall, making it the mainstream choice for CCTV systems.
Disadvantages: Without independent protection, a short circuit in one line could affect the entire system. To improve safety, a 12V DC fuse distribution module is recommended, as each channel has its own fuse, ensuring one fault does not disrupt the whole system.
3. PoE (Power over Ethernet)
In this mode, power and data are transmitted through the same Ethernet cable to supply network cameras, which is commonly used in IP surveillance systems.
Advantages: Power and data share a single cable, making wiring more efficient. This approach is especially suitable for IP cameras and remote management scenarios.
Disadvantages: Higher cost, with strict requirements for PoE switches and cabling standards. If the switch fails, a large number of cameras may lose power at once.
In summary, different surveillance systems require different power distribution solutions. Choosing the right method based on your installation environment and specific needs is the key to ensuring safe, stable, and efficient operation.
Part 2：Why do we need power distribution?
Power distribution refers to allocating electrical energy from a main source (such as utility power, a battery, a UPS, or a centralized supply) to different loads as needed. But here’s the key question: can cameras operate without a power source?
The answer is no. Whether wired or wireless, cameras always require power to function. Even wireless cameras that run on batteries still rely on a power source—the battery simply replaces a direct connection to utility power or a centralized supply.

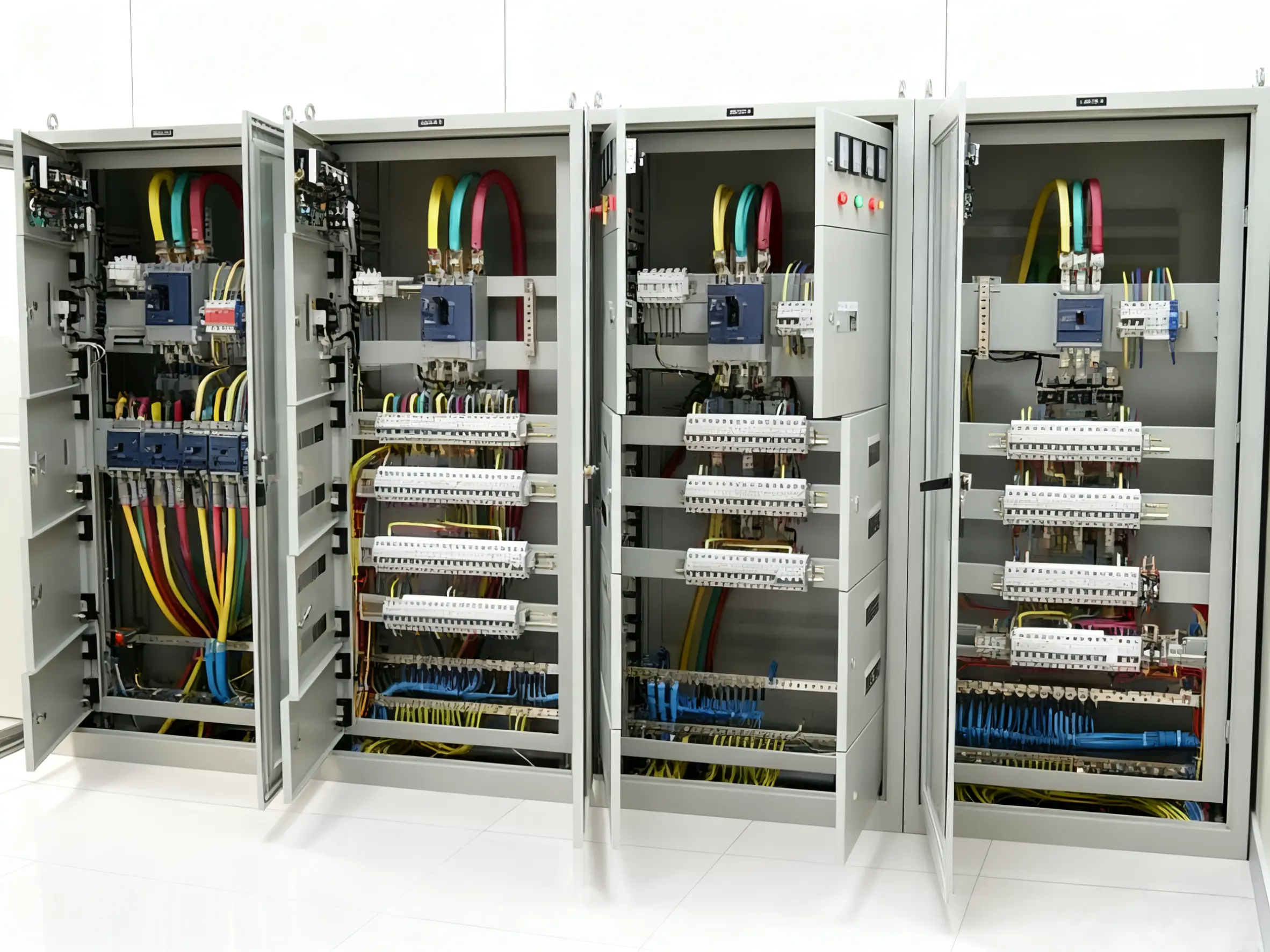

Since cameras cannot function without power, proper surveillance system power distribution becomes essential. Without structured distribution, connecting multiple cameras directly to a single source often leads to problems: DC voltage drops over long distances, messy cabling that complicates installation and maintenance, and in some cases, a single short circuit may bring down the entire system.
This is where power distribution proves its value. Its role is not only to centralize supply but also to provide independent protection for each channel. With a 12V DC fuse box (fuse distribution module), every camera receives stable voltage, faults are isolated to a single line, and technicians can quickly locate and fix issues—making the system safer, more efficient, and far more reliable.
So, how can power be distributed properly? First, choose a power unit with the right capacity based on the number of cameras and their total load. Second, keep wiring lengths reasonable to minimize voltage loss. Finally, use a distribution module with independent fuses and LED indicators for easier maintenance and future expansion.
Therefore, to keep a surveillance system running reliably, proper power distribution is essential.
Part 3: What should be used to best provide a consistent electrical source for a CCTV system?

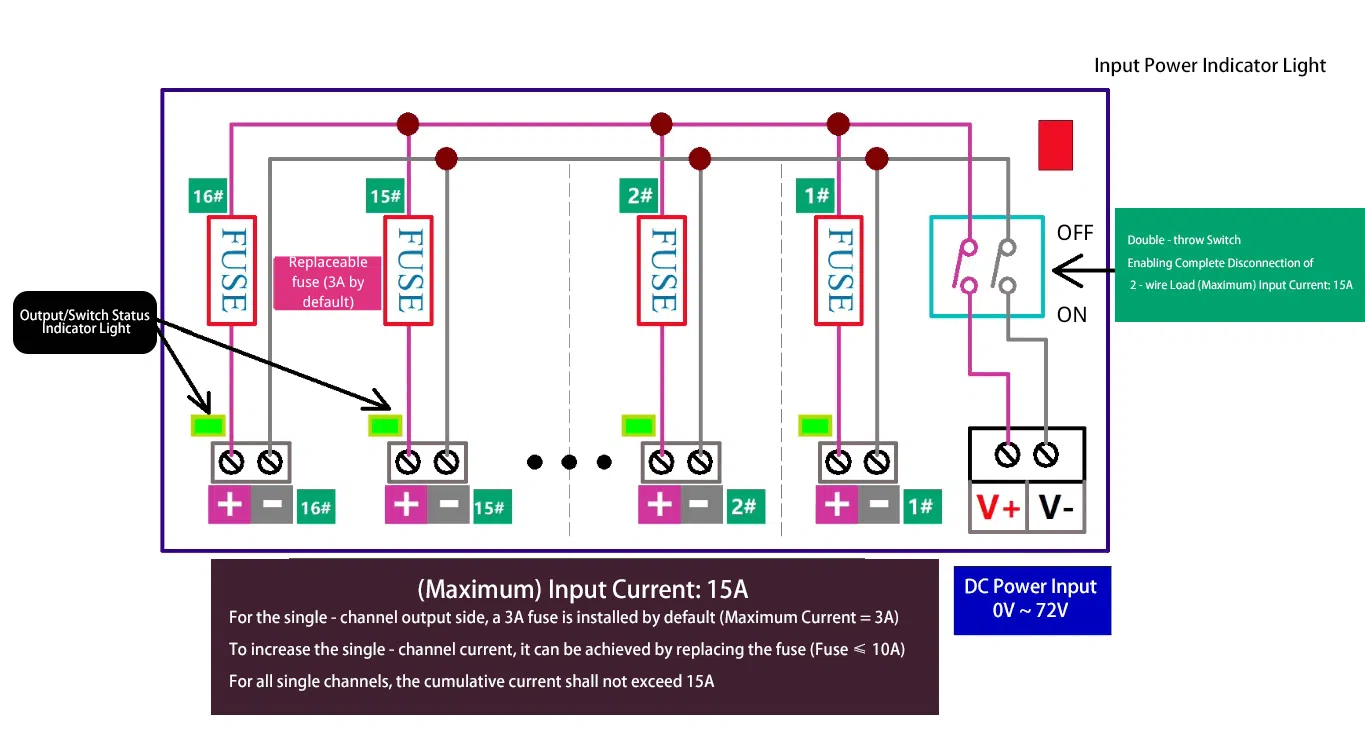

The best way to provide a stable power source for surveillance systems is to use a 12V DC fuse box (fuse distribution module). This device takes a single DC input and splits it into multiple outputs—commonly 4, 6, 8, 12, or 16 channels—making it flexible enough to meet the needs of systems of different sizes. Since most security cameras operate at 12V, compatible adapters are widely available, making 12V power both practical and reliable.
Unlike connecting all cameras directly to the same power source, a fuse distribution module offers independent protection for each channel. If one camera line experiences a short circuit or overload, only that channel is cut off while the rest of the system continues to operate, preventing a total shutdown and significantly improving reliability.
In addition, many fuse boxes are equipped with LED indicators, which clearly display the operating status of each channel, allowing technicians to quickly identify faults and reduce maintenance time. With these advantages, it has become a safer, more efficient, and easier-to-maintain solution for surveillance system power distribution.
👉Reference: CCTV Camera Power Supply – BAS-IP
Part 4：How do I know if my CCTV power supply is working?
When using a surveillance system, you may often encounter issues such as distorted colors, flickering images, no video signal, or even a complete black screen. These problems can result from various causes, such as incorrect lens settings, poor lighting conditions, or faults in the camera sensor or processor. However, one critical factor that is often overlooked is whether the power supply and surveillance system power distribution is stable.
Here are some practical ways to determine if your CCTV power supply is stable:
- Camera Performance: With a stable power supply, the video should be clear, without frequent reboots or black screens.
- Voltage Check: Use a multimeter to measure the output. For a 12V system, the voltage should remain within 11.5V–12.5V. Excessive fluctuations can affect camera performance.
- Load Condition: If multiple cameras operate normally under the same supply, the power capacity is well-matched to the system’s demand.
- Fuse Box Indicators: Many 12V DC fuse boxes (fuse distribution modules) are equipped with LED indicators. A green light shows the channel is working, while an off light indicates a fault, allowing quick identification and troubleshooting.
By following these checks, you can more effectively assess whether your power supply is stable and ensure the long-term reliable operation of your surveillance system.
FAQs
A1: It centralizes power distribution, provides independent fuse protection for each channel, and simplifies wiring for multi-camera CCTV systems.
A2: Each channel is individually protected. If one line shorts or overloads, only that circuit is cut off, while the rest of the system keeps running.
A3: Typically supports 12V DC input with per-channel capacity up to 5A (total up to 30A), meeting the needs of most CCTV and low-voltage systems.

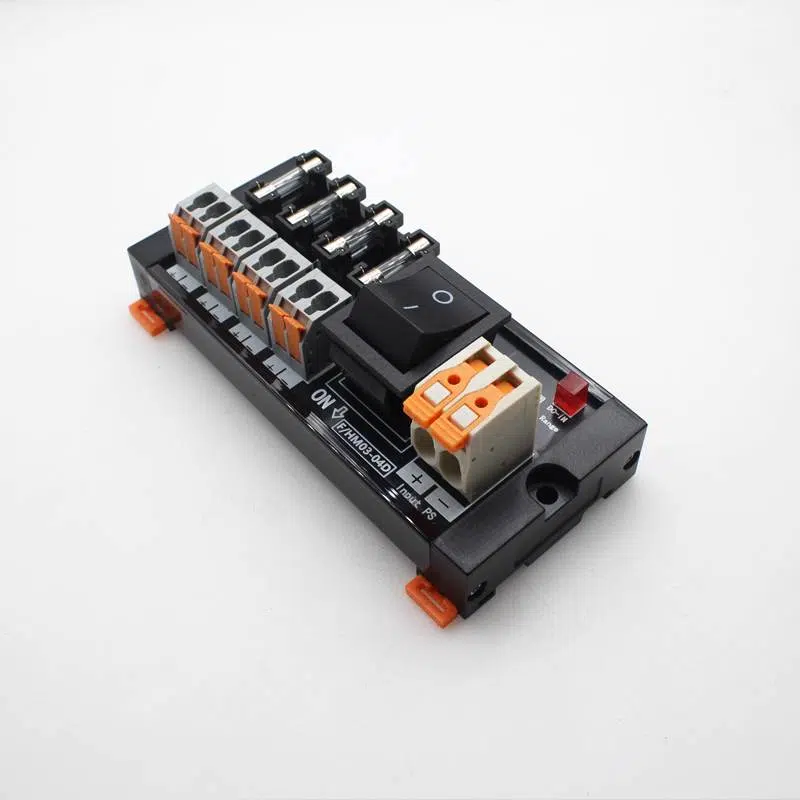

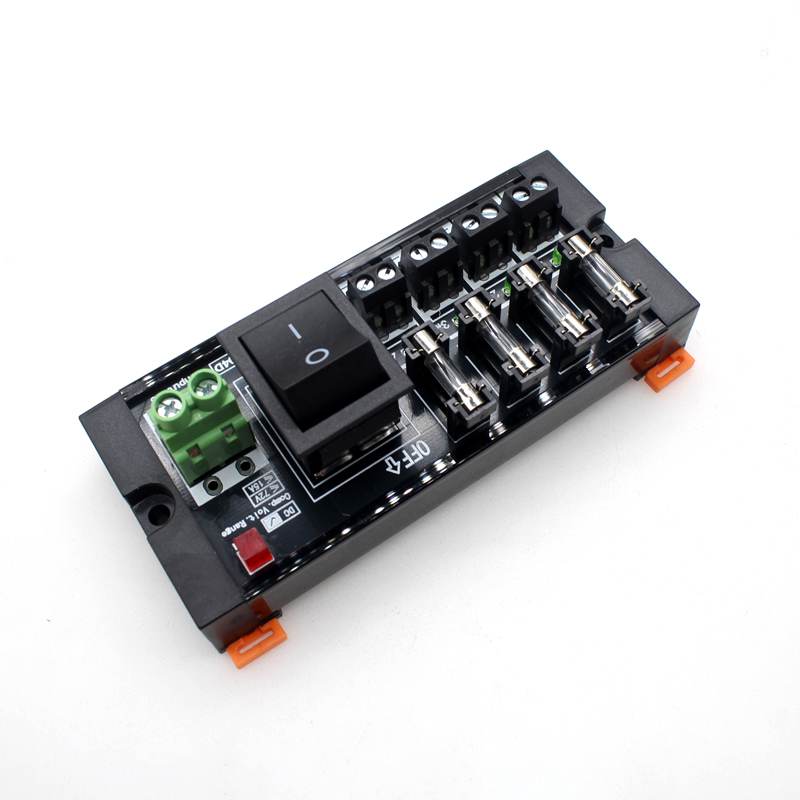

A4: Yes—it is designed for quick wiring with screw or spring terminals, and the modular design allows flexible expansion to meet future system requirements.
A5: Widely used in CCTV camera systems, LED lighting projects, alarm systems, and other low-voltage applications requiring centralized and protected power.
Conclusion
A well-designed surveillance system power distribution plan is just as important as choosing the right cameras. By using centralized 12V DC power with a fuse distribution module, you can achieve stable voltage, independent channel protection, and efficient troubleshooting. This not only prevents total system failure but also reduces maintenance costs and downtime. For long-term safety and efficiency, proper power distribution is the foundation of every reliable CCTV system.
