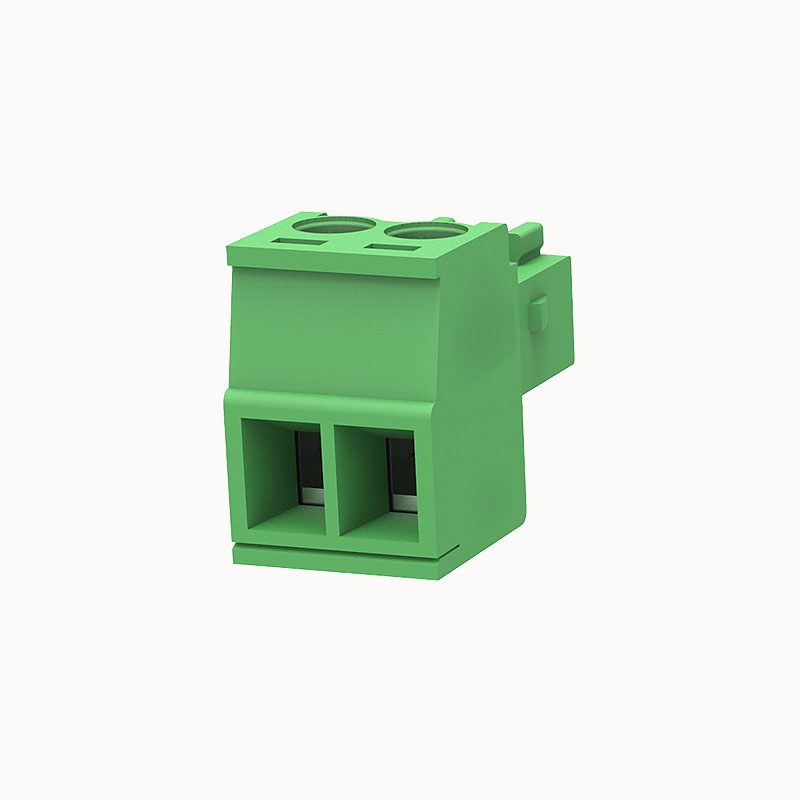

Degson Alternative Terminal Block Automation System Compatible

Rated current: 8A
Rated voltage: 300 V
Pitch: 3.81mm

Model

Position

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Conductor cross section solid	0.5~1.5mm²
Conductor cross section flexible	0.5~1.5mm²
AWG	20~16AWG
Strip length	12mm

Electrical parameters UL

Rated voltage (B)	300V
Rated voltage (D)	300V
Rated current (B)	6A
Rated current (D)	6A

Electrical parameters lEC

Rated voltage	400V
Rated voltage(III/3)	320V
Rated current	6A
Rated voltage(III/2)	400V
Rated voltage(II/2)	630V
Rated surge voltage(III/3)	4KV
Rated surge voltage(III/2)	4KV
Rated surge voltage(II/2)	4KV

ltem properties

Connection direction	0°
Connection method	Push-in spring connection
Pitch	6.35mm
Number of potentials	2-12P
Pluggable or not	Yes
Number of rows	2

Material data

Environmental items	Compliant with REACH/RoHS
Contact material	Copper alloy
Contact point metal surface	tin-plated
Contact zone metal surface	tin-plated
Insulation Materials	PA66
Shell color	Gray
Insulating material group	Ⅰ
Flammability rating	UL94V-0

Mechanical tests

Test Specification

IEC61984/ UL1059

Environmental data

Relative humidity (storage/transport)	30% ~ 70%
Ambient temperature (assembly)	-5℃~100℃
Ambient temperature (operation)	-40℃~105℃(depending on derating curve)
Ambient temperature (storage / transport)	-40℃~70℃

Packing unit	500
MOQ	30
Weight (without packaging)

VDE parameters

Overvoltage category/Degree of pollution	III/3	III/2	II/2
Rated voltage	/	250V	/
Rated current	/	2A	/
Cross section	/	0.2~0.5	/

UL parameters

Use group	B	C	D
Rated voltage	300V	300V	300V
Rated current	2A	2A	2A
AWG	24~20	24~20	24~20
