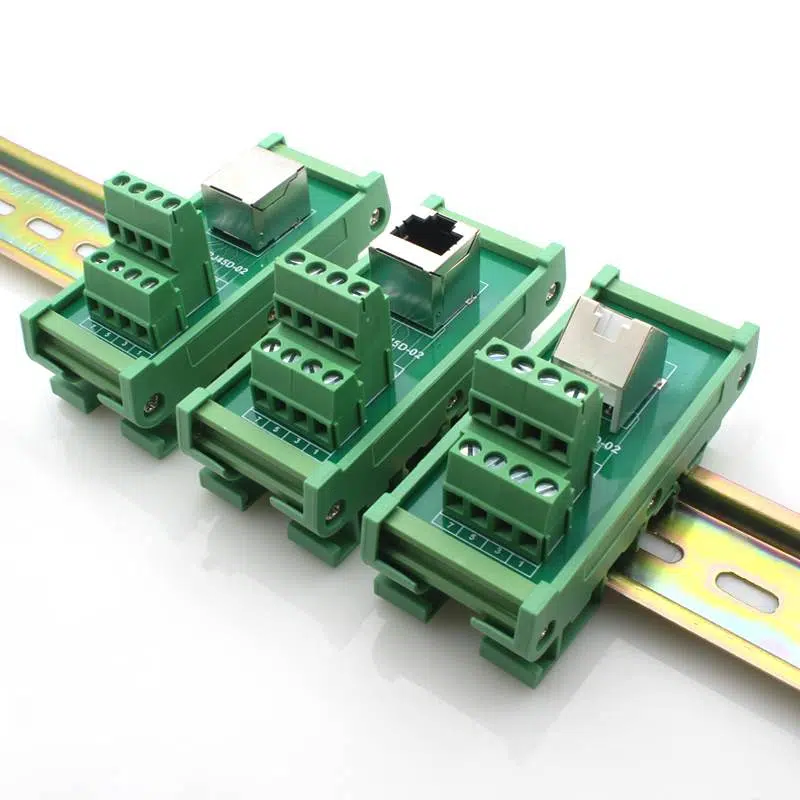

Product Function: D-SUB terminal box
Rated Voltage: DC24V
Input max current(single-channel): 1A
Input terminal interface/usable wire diameter:RJ45
Output terminal interface/usable wire diameter: 24-12AWG/0.5-2.5mm2
| Model（Spring） | Type | Size（L*W*Hmm） |
| RJ45D-01 | 45° | 24*85.3*38.7mm |
| RJ45D-01 | 90° | |
| RJ45D-02 | 45° | 35*85.3*46.9mm |
| RJ45D-02 | 90° | |
| RJ45D-02 | 180° | |
| RJ45D-02S | 45° | 40*85.3*46.9mm |
| RJ45D-02S | 90° |
Operating function as follows:
Specifications:
| Rated current | 1A |
| Rated voltage | DV24V |
| Wire range | 1.5mm2 following / AWG16 |

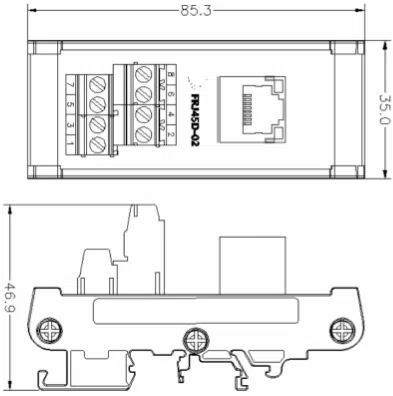

Dimension:

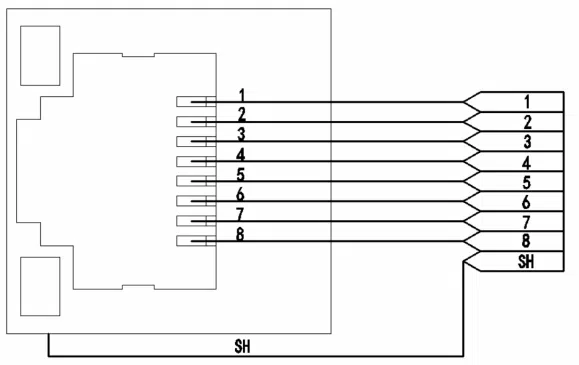

Wiring Diagram:
Wire stripping Recommendation:
