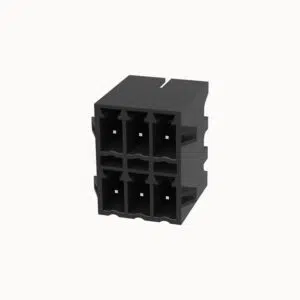

Home  >  Terminal Blocks  >  Pluggable Terminal Block  >  High-Quality Terminal Blocks FPS1.5-XX-350-22F
Industrial Green Connectors

Durable Terminal Blocks – Multi-Style Options for Industrial Applications

Pitch: 3.5mm/3.81mm
Rated current: 8A
Rated voltage：300V
Wire range: 28-16 AWG
Connection method: Push-in spring connection



Add to quote

Product certification

Replacement Compatibility

  • Compatible with Degson: 15EDGKNHCG series
  • Alternative to: Long guide slot terminal plugs
  • Replacement for: KF2EDGKNHG

Product Advantages

  • ☑ Extended insertion guide for easy mating
  • ☑ Secure contact under high mechanical stress
  • ☑ Flame-retardant housing

Application Scenarios

  • Sensor interface terminals
  • Field control units
  • Automation systems

Connection capacity

Conductor cross section solid 0.2~2.5mm²
Conductor cross section flexible 0.2~2.5mm²
AWG 20~12AWG
Strip length 10mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 12A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 450V
Rated current 16A
Rated voltage(III/2) 450V
Rated surge voltage(III/2) 2.5KV





ltem properties

Connection direction 0°
Type of installation PCB welding
Pin arrangement Double-row of misalignment
Connection method Push-in spring connection
Pitch 5mm
Number of potentials 2-24P
Pluggable or not no
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059/IEC60998





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
FPS1.5-XX-350-22FAOSI.pdf
PDF Download
