High-density Pluggable Terminal Block | Spring Clamp Connection | FPM1.5-XX-508-00R

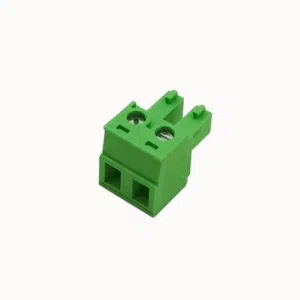

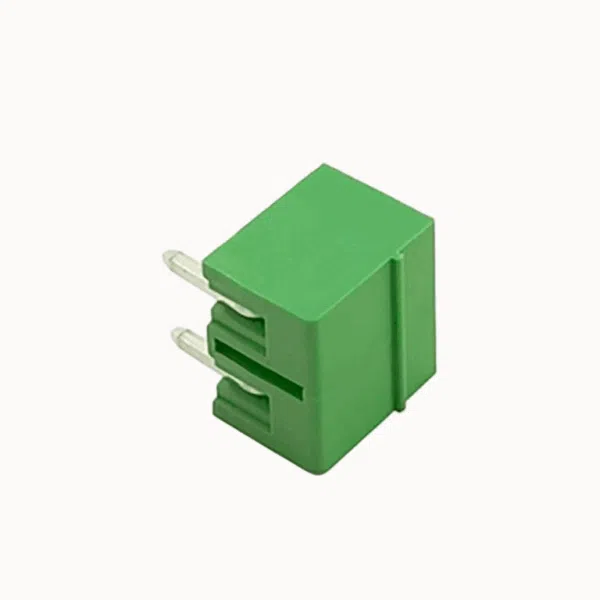

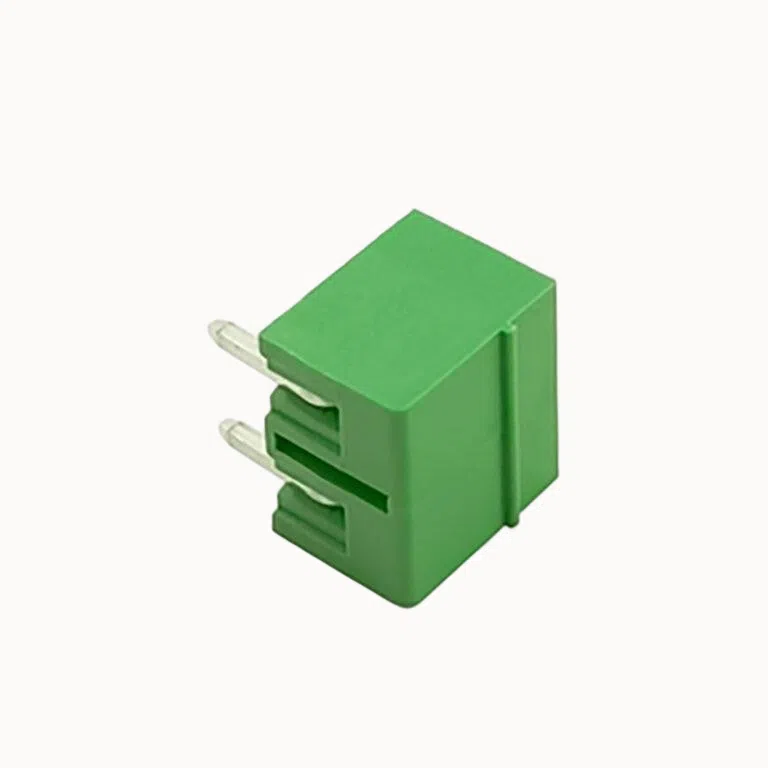

High-density Pluggable Terminal Block Spring Clamp Connection

Rated current: 8A
Rated voltage: 300 V
Pitch: 5.08 mm

Add to quote

Product certification

Replacement Compatibility

  • Compatible with: Degson 15EDGRC
  • Alternative to: Standard 5.08mm side-entry plug-in blocks

Product Advantages

  • ☑ Side-entry (right-angle) wiring saves board height
  • ☑ Secure screw-clamp mechanism ensures high reliability
  • ☑ Modular plug-in design simplifies assembly and repair

Application Scenarios

  • Motion controllers
  • Measurement and instrumentation
  • Electronic interface modules


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A





Electrical parameters lEC

Rated voltage 250V
Rated current 7A
Rated voltage(II/2) 250V
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 0°
Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 3.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P
03P
04P
05P
06P
07P
08P
FPM1.5-XX-508-00RAOSI.pdf
PDF Download
