Male-female Plug Terminal Block | Male-female Mating Structure | FPM1.5-XX-381-00R

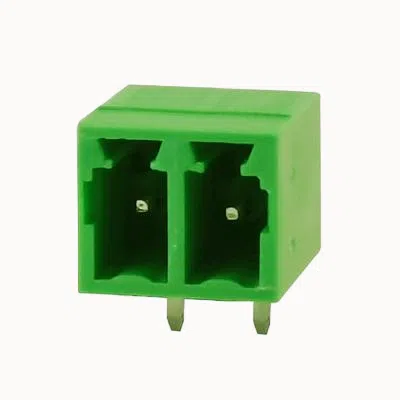

Male-female Plug Terminal Block Male-female Mating Structure

Rated current: 8A
Rated voltage: 300 V
Pitch: 3.5mm

Add to quote

Product certification

Pitch Options: 3.5mm / 3.81mm

Right-angle socket terminals for edge-mount PCB applications.

Replacement Compatibility

  • Replacement for: Degson 15EDGRC series
  • Alternative to: Horizontal plug-in socket blocks

Product Advantages

  • ☑ 90-degree profile reduces vertical space
  • ☑ Lockable interface ensures anti-vibration fit
  • ☑ Suitable for control cabinets and modular panels

Application Scenarios

  • Low-profile junction boxes
  • DIN-rail PLCs
  • Remote I/O


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A





Electrical parameters lEC

Rated voltage 250V
Rated current 7A
Rated voltage(II/2) 250V
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 0°
Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 3.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 0.44
03P 0.62
04P 0.8
05P 0.98
06P 1.16
07P 1.34
08P 1.52
09P 1.7
FPM1.5-XX-381-00RAOSI.pdf
PDF Download
