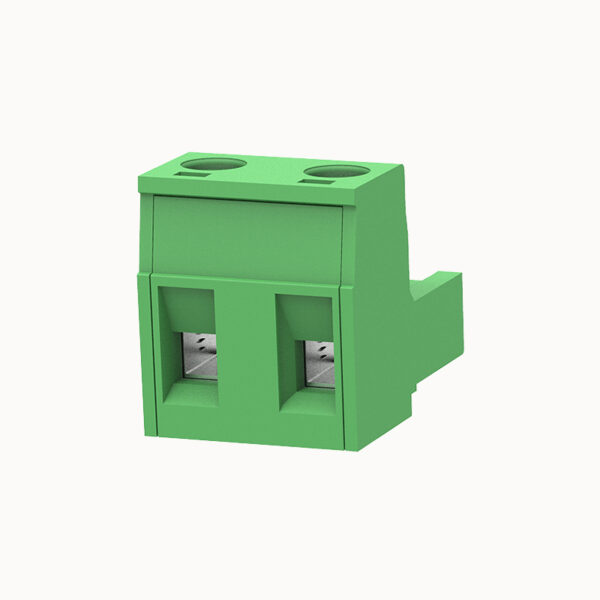

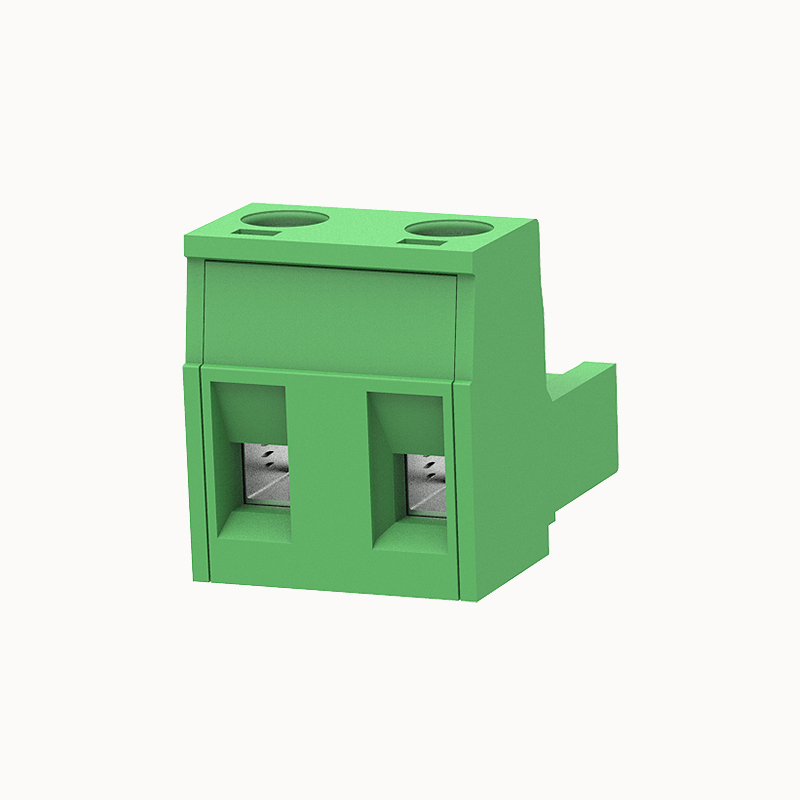

Male Plug in Terminal Block Screw Connection Type

Rated current:20A
Rated voltage （III/2）:400V
pitch:7.5mm
Color:green
Contact surface :Tin

Model

Position

Clear

Add to quote

Product certification

Replacement Compatibility

Series Description: 7.50/7.62mm wide pitch power connector series
Alternative Models: Phoenix Contact: GMSTB-2,5..-ST, Dinkle: 7ESDV

Product Advantages

☑ Wide 7.5mm/7.62mm pitch meets requirements for higher voltage and current.
☑ Powerful connection capability, suitable for power and drive applications.
☑ Sturdy structure ensures safety and stability under high current.

Application Scenarios

Power Distribution Units (PDU)
Motor drives
Solar inverters

Connection capacity

Conductor cross section solid	0.2~2.5mm²
Conductor cross section flexible	0.2~2.5mm²
AWG	24~14AWG
Strip length	10mm

Electrical parameters UL

Rated voltage (B)	300V
Rated voltage (D)	300V
Rated current (B)	15A
Rated current (D)	10A

Electrical parameters lEC

Rated voltage	400V
Rated voltage(III/3)	320V
Rated current	16A
Rated voltage(III/2)	400V
Rated voltage(II/2)	800V
Rated surge voltage(III/3)	4KV
Rated surge voltage(III/2)	4KV
Rated surge voltage(II/2)	4KV

ltem properties

Connection method	Push-in spring connection
Pitch	7.5mm
Number of potentials	2-12P
Pluggable or not	Yes

Material data

Environmental items	Compliant with REACH/RoHS
Contact material	Copper alloy
Contact zone metal surface	tin-plated
Insulation Materials	PA66
Shell color	green
Flammability rating	UL94V-0

Mechanical tests

Relative humidity (storage/transport)	30% ~ 70%
Ambient temperature (assembly)	-5℃~100℃
Ambient temperature (operation)	-40℃~105℃(depending on derating curve)
Ambient temperature (storage / transport)	-40℃~70℃

Brand	AOSI
Packing unit	100
Minimum order quantity	50

Products weight(g):
02P	3.745
03P	5.663
04P	7.591
05P	9.521
06P	11.448
07P	13.376
08P	15.304
11P	21.089

FPC2.5-XX-750-00AOSI.pdf
