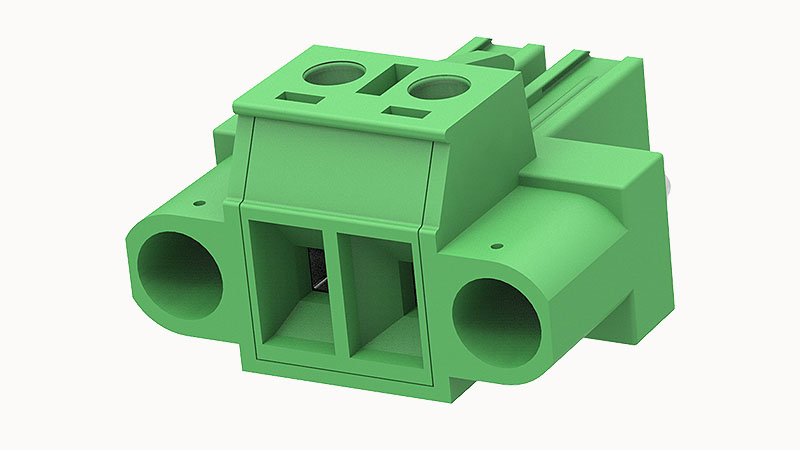

Modular Plug in Terminal Block PCB Mountable

,Rated current:30A.
Rated voltage (III/2):300V,
pitch:7.62mm,
Color:green,
Contact surface :Tin

Model

Position

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Conductor cross section solid	0.5~1.5mm²
Conductor cross section flexible	0.5~1.5mm²
AWG	28~16AWG
Torque	0.2N.m
Strip length	7mm

Electrical parameters UL

Rated voltage (B)	300V
Rated voltage (D)	300V
Rated current (B)	8A
Rated current (D)	8A

Electrical parameters lEC

Rated voltage	250V
Rated current	7A
Rated voltage(II/2)	250V
Rated surge voltage(II/2)	2.5KV

ltem properties

Connection direction	0°
Connection method	Screw connection
Screwdriver	Slotted screwdriver
screw thread	M2
Pitch	3.5mm
Number of potentials	2-12P
Pluggable or not	Yes
Number of rows	1

Material data

Environmental items	Compliant with REACH/RoHS
Contact material	Copper alloy
Contact zone metal surface	tin-plated
Insulation Materials	PA66
Insulating material group	Ⅰ
Flammability rating	UL94V-0

Mechanical tests

Test Specification

IEC61984/ UL1059

Environmental data

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Packing unit	500
MOQ	30
Weight (without packaging)

VDE parameters

Overvoltage category/Degree of pollution	III/3	III/2	II/2
Rated voltage	/	/	250V
Rated current	/	/	7A
Cross section	/	/	0.5~1.5

UL parameters

Use group	B	C	D
Rated voltage	300V	/	300V
Rated current	8A	/	8A
AWG	28~16	/	28~16
