Multi-pin Terminal Block | PCB Mountable | FPM2.5-XX-750-02R

Home > Terminal Blocks > Pluggable Terminal Block > FPM2.5-XX-750-02R

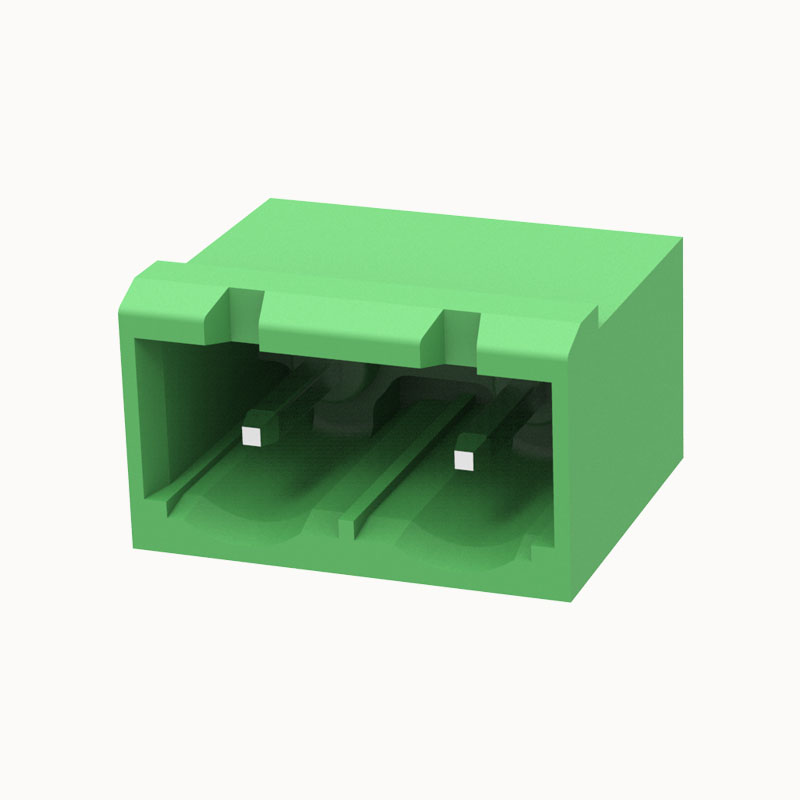

Multi-pin Terminal Block PCB Mountable

Rated current: 16A
Rated voltage: 300
Pitch：7.5mm

Model

Position

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Electrical parameters UL

Rated voltage (B)	300V
Rated voltage (D)	300V
Rated current (B)	15A
Rated current (D)	10A

Electrical parameters lEC

Rated voltage	400V
Rated current	20A
Rated voltage(III/2)	400V
Rated surge voltage(III/2)	2.5KV

ltem properties

Connection direction	0°
Type of installation	PCB welding
Pin arrangement	Single row in a straight line
Pitch	7.5mm
Number of potentials	2-12P
Pluggable or not	Yes
Number of rows	1

Material data

Environmental items	Compliant with REACH/RoHS
Contact material	copper
Contact zone metal surface	tin-plated
Insulation Materials	PA66
Insulating material group	Ⅰ
Flammability rating	UL94V-0

Mechanical tests

Test Specification

IEC61984/ UL1059

Environmental data

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Packing unit	500
MOQ	30
Weight (without packaging)

VDE parameters

Screwdriver	/
Operating tool	/

UL parameters

Coding strip	/
Bridge	/
Marking strip	/
Others	2EDG-PWP-01A(H)

FPM2.5-XX-750-02RAOSI.pdf
