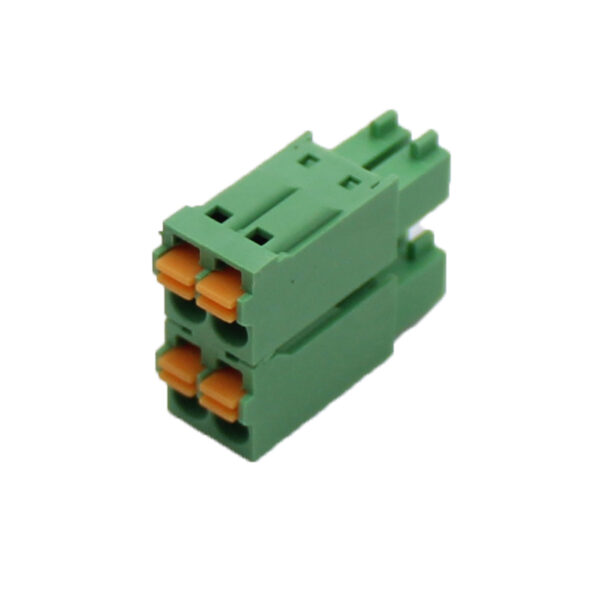

Plug-in Terminal Block 3.81mm | Automation System Compatible | FPS1.5-XX-381-22

Plug-in Terminal Block 3.81mm Automation System Compatible

Rated current:13.5A
Rated voltage （Ⅲ/2）:160V
Cross section:1.5mm²
pitch:3.81mm
Color:green
Contact surface :Tin

Add to quote
AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Conductor cross section solid 0.2~1.5mm²
Conductor cross section flexible 0.2~1.0mm²
AWG 24~16AWG
Strip length 8mm





Electrical parameters UL

Rated voltage (B) 300V
Rated current (B) 8A





Electrical parameters lEC

Rated voltage 160V
Rated voltage(III/3) 160V
Rated current 8A
Rated voltage(III/2) 160V
Rated voltage(II/2) 320V
Rated surge voltage(III/3) 2.5KV
Rated surge voltage(III/2) 2.5KV
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 0°
Connection method Push-in spring connection
Pitch 3.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 2





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)

VDE parameters

Overvoltage category/Degree of pollution III/3 III/2 II/2
Rated voltage 160 160 320
Rated current 13.5 13.5 13.5
Cross section 0.2-1.5mm² 0.2-1.5mm² 0.2-1.5mm²




UL parameters

Use group B C D
Rated voltage 300 50 300
Rated current 10 10 10
AWG 28-16AWG 28-16AWG 28-16AWG
