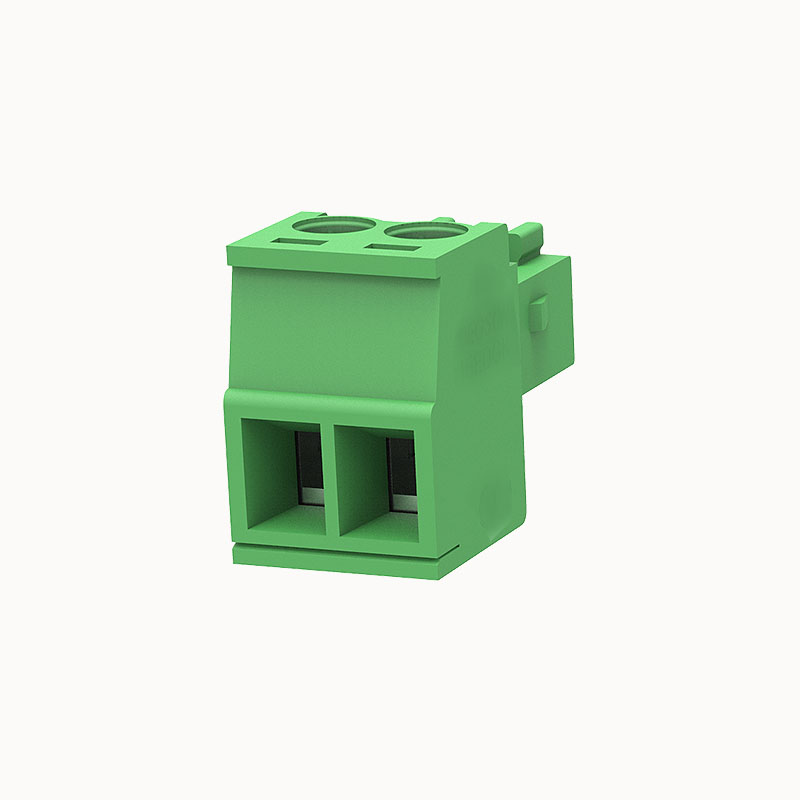

Pluggable Terminal Block Connector | Side entry Screw Lock | FPC1.5-XX-350-00

Pluggable Terminal Block Connector Side entry Screw Lock

Rated current: 8A
Rated voltage: 300 V
Pitch: 3.5mm

Add to quote

Product certification

Pitch Options: 3.5mm / 3.81mm

Available in two standard pitches for diverse design requirements. 3.5mm suits compact layouts; 3.81mm ensures better voltage isolation.

Replacement Compatibility

  • Compatible with Phoenix Contact： MC1.5/ ST-3.5/3.81
  • Alternative to Dinkle: EC350W
  • Replacement for Degson: 15EDGK

Product Advantages

  • ☑ Straight pin header for vertical PCB installation
  • ☑ Fast PUSH-IN wiring without tools
  • ☑ Dual pitch options provide design flexibility

Application Scenarios

  • Industrial sensors
  • Relay modules
  • Smart lighting controllers

Connection capacity

Conductor cross section solid 0.5~1.5mm²
Conductor cross section flexible 0.5~1.5mm²
AWG 20~16AWG
Strip length 12mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 6A
Rated current (D) 6A





Electrical parameters lEC

Rated voltage 400V
Rated voltage(III/3) 320V
Rated current 6A
Rated voltage(III/2) 400V
Rated voltage(II/2) 630V
Rated surge voltage(III/3) 4KV
Rated surge voltage(III/2) 4KV
Rated surge voltage(II/2) 4KV





ltem properties

Connection direction 0°
Connection method Push-in spring connection
Pitch 6.35mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 2





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Shell color Gray
Insulating material group Ⅰ
Flammability rating UL94V-0







Mechanical tests

est Specification IEC61984/ UL1059





Environmental data

Relative humidity (storage/transport) 30% ~ 70%
Ambient temperature (assembly) -5℃~100℃
Ambient temperature (operation) -40℃~105℃(depending on derating curve)
Ambient temperature (storage / transport) -40℃~70℃



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 1.46
03P 2.15
04P 2.84
05P 3.53
06P 4.22
07P 4.91
08P 5.6
09P 6.29
10P 6.98
11P 7.67
12P 8.36
13P 9.05
14P 9.74
15P 10.43
16P 11.12
17P 11.81
18P 12.5
19P 13.19
20P 13.88
22P 15.26
23P 15.95
24P 16.64
FPC1.5-XX-350-00AOSI.pdf
PDF Download

Pluggable Terminal Block | Right Angle Solder Pins | FPM1.5-XX-350-00R

Rated current:8A Rated voltage:300 V Pitch: 3.5mm
Know More

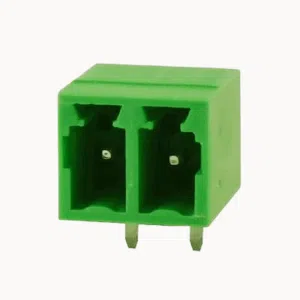

Pluggable Terminal Block Replaces Degson | Standard Male Header | FPH1.5-XX-350-00

Rated current: 8A Rated voltage: 300 V Pitch: 3.5 mm
Know More

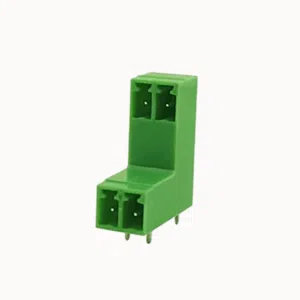

Plug-in Terminal Block replaces Degson | Vertical Mount Type | FPH1.5-XX-350-17

Rated current: 8 A Rated voltage: 300 V Pitch:3.5mm
Know More

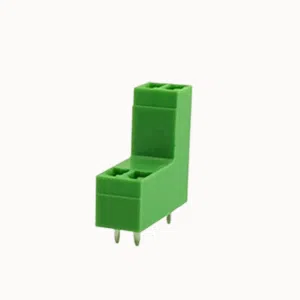

Pluggable Terminal Block | UL Listed Manufacturer, Right Angle Header | FPH1.5-XX-350-17R

Rated current: 8 A Rated voltage: 300 V Pitch:3.5mm
Know More

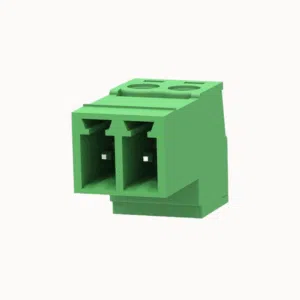

Connector Pair for Pcb Wiring | Releasable Plug Interface | FPC1.5-XX-381-17
