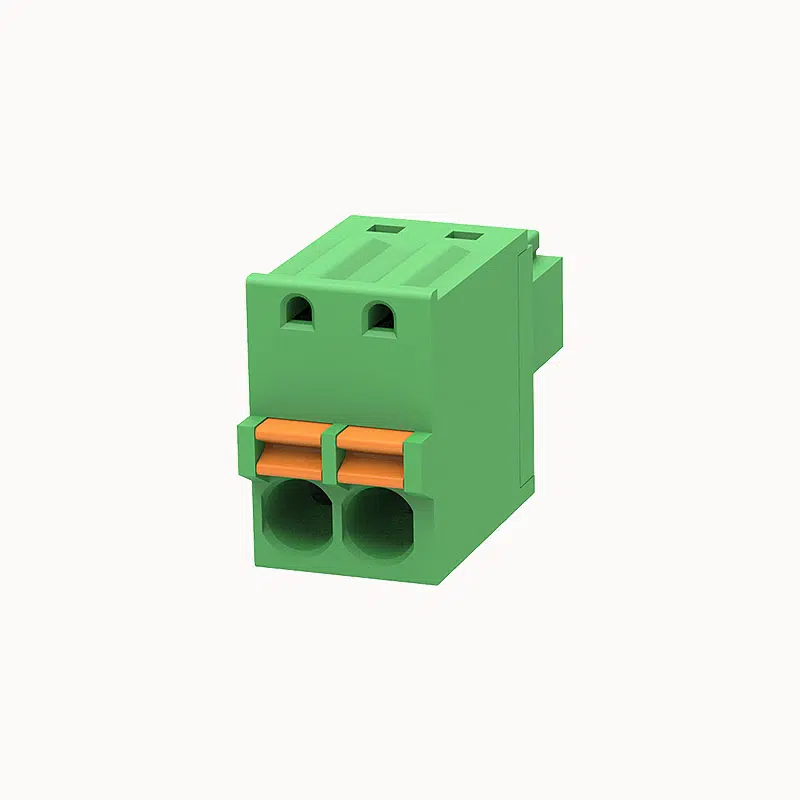

Pluggable Terminal Block Connector | Spring Connection 3.5mm Pitch | FPS1.5-XX-350-00

Pluggable Terminal Block Connector Spring Connection 3.5mm Pitch

Rated current:8A.Rated voltage ???a???/2???:250V,Cross section:1.0mm?2,pitch:3.5mm,Color:green,Contact surface :Tin

Add to quote

AOSI Electronics is a professional manufacturer of terminal blocks and modules, offering reliable connection solutions for industrial automation, new energy, and electrical systems.

Connection capacity

Conductor cross section solid 0.2~1.5mm²
Conductor cross section flexible 0.2~1.5mm²
AWG 28~16AWG
Strip length 9mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (C) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A
Rated current (C) 8A





Electrical parameters lEC

Rated voltage 250V
Rated current 12A
Rated voltage(III/2) 250V
Rated surge voltage(III/2) 2.5KV





ltem properties

Connection method Push-in spring connection
Screwdriver Slotted screwdriver
Pitch 3.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact zone metal surface tin-plated
Insulation Materials PA66
Relative tracking index CTI 600V
Shell color green
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)

VDE parameters

Overvoltage category/Degree of pollution III/3 III/2 II/2
Rated voltage / 250 /
Rated current / 12 /
Cross section / 0.2-1.5 /



UL parameters

Use group B C D
Rated voltage 300 / 300
Rated current 8 / 8
AWG 28-16 28-16 28-16



FPS1.5-XX-350-00AOSI.pdf
PDF Download
