Pluggable Terminal Block | 90 Degree Male Part | FPM0.5-XX-250-00R

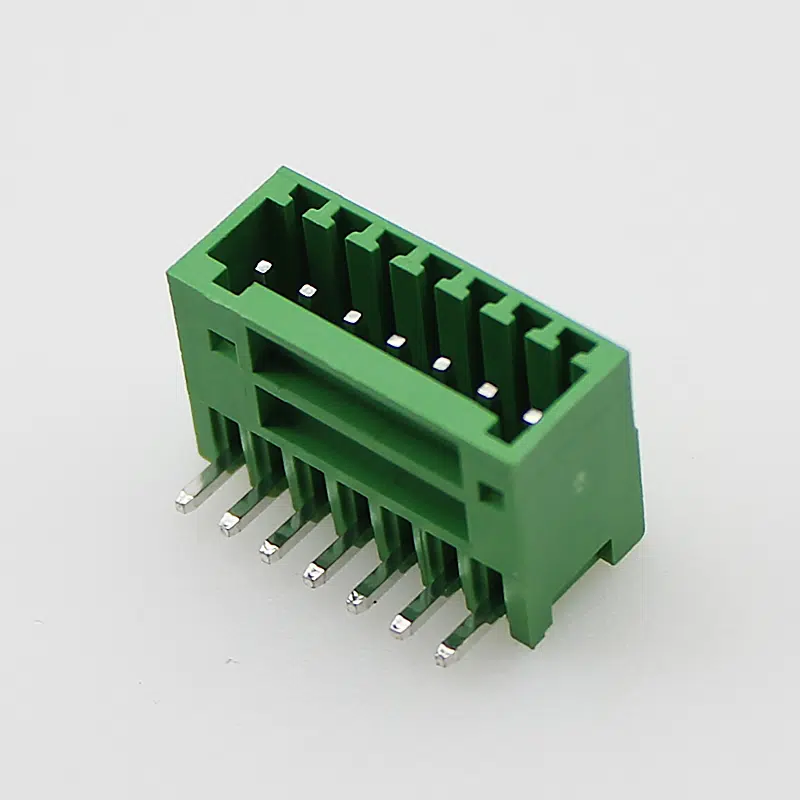

Pluggable Terminal Block 90 Degree Male Part

Rated current: 5A
Rated voltage: 150 V
Pitch: 2.5 mm/2.54mm



Add to quote

Product certification

Pitch: 2.5mm / 2.54mm

Right-angle version of the 2.5mm/2.54mm socket series, optimized for horizontal PCBs.

Replacement Compatibility

  • Replacement for: Degson 15EDGRC series
  • Alternative to: Right-angle spring socket terminal blocks

Product Advantages

  • ☑ 90° plug orientation for horizontal access
  • ☑ Excellent for enclosures with height constraints
  • ☑ Reliable fit with standard female connectors

Application Scenarios

  • Industrial I/O ports
  • Sensor networks
  • Horizontal rack-mounted devices

Connection capacity

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A





Electrical parameters UL

Rated voltage 250V
Rated current 7A
Rated voltage(II/2) 250V
Rated surge voltage(II/2) 2.5KV





Electrical parameters lEC

Connection direction 0°
Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 3.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





ltem properties

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Material data

Test Specification IEC61984/ UL1059





Mechanical tests

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 0.49
03P 0.67
04P 0.85
05P 1.03
06P 1.21
07P 1.39
08P 1.57
09P 1.75
10P 1.93
11P 2.11
12P 2.29
暂无文件
PDF Download

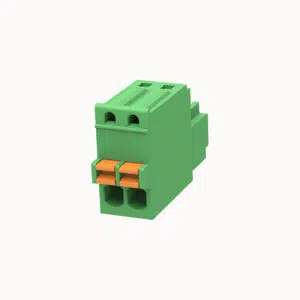

Pluggable Terminal Block Connector | 2.5mm Pitch | FPS0.5-XX-250-00
