Spring-loaded Terminal Block | Secure Locking System | FPM2.5-XX-508-02R

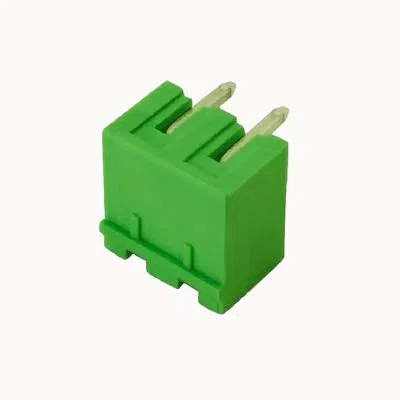

Spring-loaded Terminal Block Secure Locking System

Rated current: 15 A
Rated voltage: 300 V
Pitch:5.08mm

Add to quote

Product certification

Pitch Option: 5.00mm / 5.08mm

Right-angle pluggable screw terminal block with closed sides.

Replacement Compatibility

  • Compatible with: Degson 2EDGRC
  • Alternative to: Right-angle terminal blocks with coding or enhanced safety features

Product Advantages

  • ☑ Side-entry wiring with closed housing for a secure, low-profile connection
  • ☑ Guided mating reduces pin-out errors and protects contacts
  • ☑ Proven screw connection ensures long-term reliability

Application Scenarios

  • Servo drives
  • Control cabinets
  • Measurement and test equipment

Connection capacity

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A





Electrical parameters UL

Rated voltage 400V
Rated current 20A
Rated voltage(III/2) 400V
Rated surge voltage(III/2) 2.5KV





Electrical parameters lEC

Connection direction 0°
Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 7.5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





ltem properties

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Material data

Test Specification IEC61984/ UL1059





Mechanical tests

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 0.81
03P 1.16
04P 1.51
05P 1.89
06P 2.21
07P 2.54
08P 2.9
09P 3.25
10P 3.6
11P 3.95
12P 4.3
13P 4.65
14P 5
15P 5.35
16P 5.7
17P 6.04
18P 6.38
19P 6.73
20P 7.11
21P 7.45
22P 7.8
23P 8.14
24P 8.49
FPM2.5-XX-508-02RAOSI.pdf
PDF Download
