Product Function: one-in/multiple-out terminal box
Rated Voltage: 300V
Input max current(single-channel): 10A
Input/output terminal interface/usable wire diameter: 24-12AWG/0.5-2.5mm2
| Model（Spring） | Size（L*W*Hmm） | Model（Screw） | Size (L*W*Hmm) |
| HM02-06D | 55*55*42mm | FM02-08D | 65*55*43.2mm |
| HM02-12D | 85*55*42mm | FM02-10D | 75*55*43.2mm |
| HM02-24D | 145*55*42mm | FM02-16D | 106*55*43.2mm |
Features:
Operating function as follows:
Specifications:
| Rated current | 1A |
| Rated voltage | DV24V |
| Wire range | 1.5mm2 following / AWG16 |

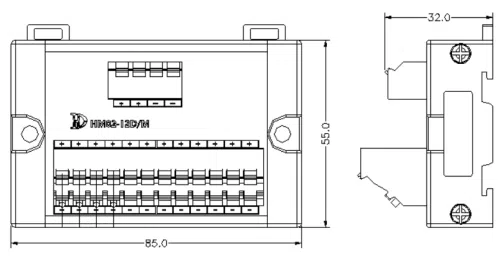

Dimension:

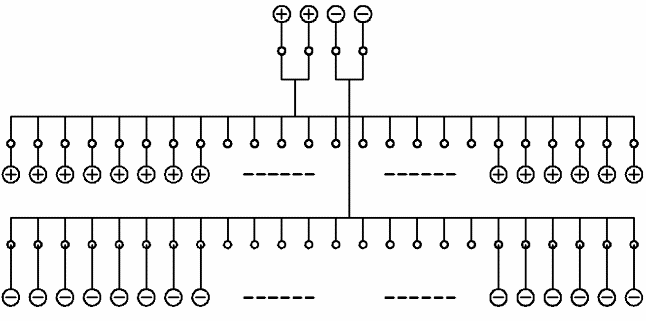

Wiring Diagram:
Wire stripping Recommendation:
