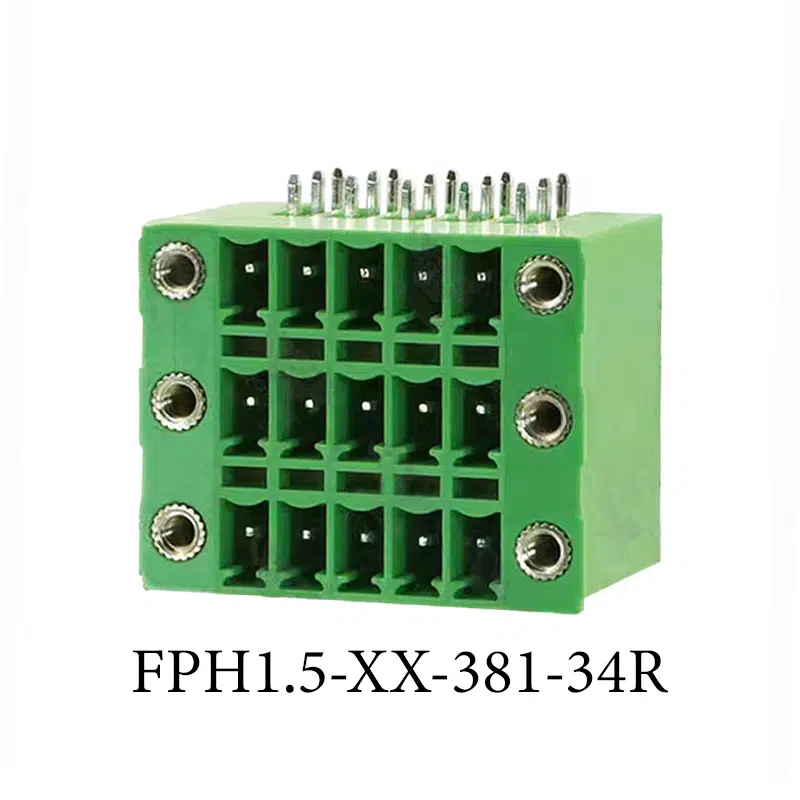

Connector Pair for PCB Wiring | Compact Housing Structure | FPH1.5-XX-381-34R

Connector Pair for PCB Wiring Compact Housing Structure

Rated current: 8 A
Rated voltage: 300 V
Pitch:3.81mm

Add to quote

Product certification

Replacement Compatibility

  • Series Description: 3.5/3.81mm pitch Double-Level Shrouded Header (Angled)

Product Advantages

  • ☑ Offers maximum connection density in a low-profile, board-edge format.
  • ☑ Angled design is ideal for slim devices or rack-mounted applications.
  • ☑ Shrouded on both levels for enhanced reliability and protection.

Application Scenarios

  • Telecommunications infrastructure
  • Network servers and switches
  • Advanced instrumentation

Connection capacity

Conductor cross section solid 0.2~0.5mm²
Conductor cross section flexible 0.2~0.5mm²
AWG 24~20AWG
Strip length 9mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (C) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A
Rated current (C) 8A





Electrical parameters lEC

Rated voltage 300V
Rated current 8A
Rated voltage(III/2) 300V
Rated surge voltage(III/2) 4KV





ltem properties

Type of installation PCB welding
Pin arrangement Double-row of misalignment
Connection method Push-in spring connection
Pitch 3.81mm
Number of potentials 2-24P
Pluggable or not no
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059/IEC60998





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)
