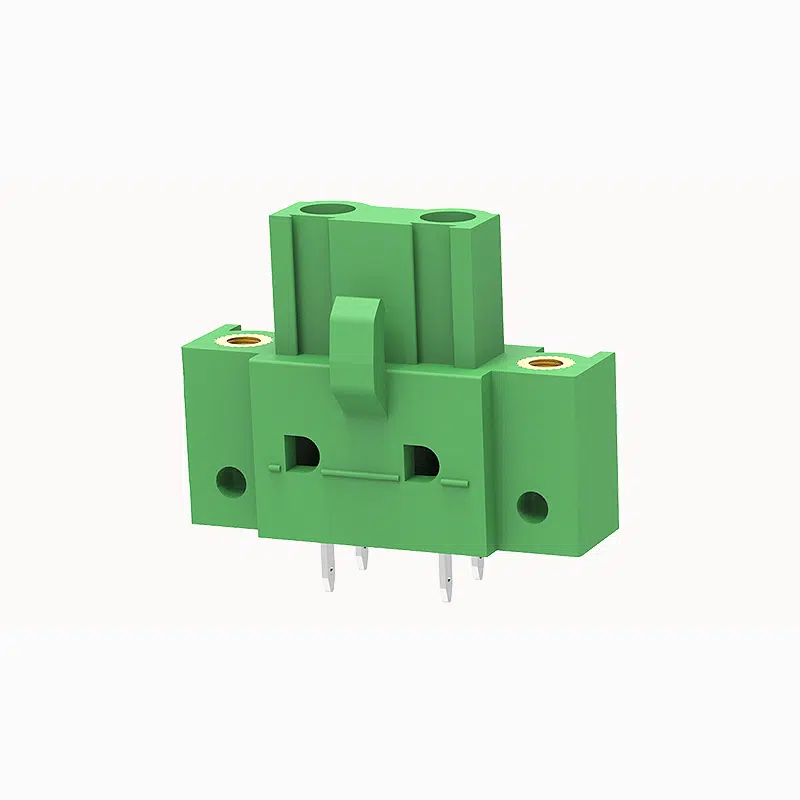

Male Pcb Connector | Factory Price Available | FPM2.5-XX-762-08

Male Pcb Connector Factory Price Available

Rated current: 15 A
Rated voltage: 300 V
Pitch:7.62mm

Add to quote

Product certification

Replacement Compatibility

  • Series Description: 7.62mm pitch Double-level Push-in plug
  • Alternative Models: 2EDGBM

Product Advantages

  • ☑ Doubles the connection density on a wide 7.62mm pitch for power circuits.
  • ☑ A space-saving solution for complex power and signal wiring.
  • ☑ Fast and reliable tool-free Push-in wiring on both levels.

Application Scenarios

  • High-density power interfaces
  • Industrial automation
  • Railway technology


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 320V
Rated current 20A
Rated voltage(III/2) 320V
Rated surge voltage(III/2) 4KV





ltem properties

Connection direction 90°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Pitch 7.62mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 2.203
03P 3.801
05P 5.613
08P 8.392
FPM2.5-XX-762-08AOSI.pdf
PDF Download
