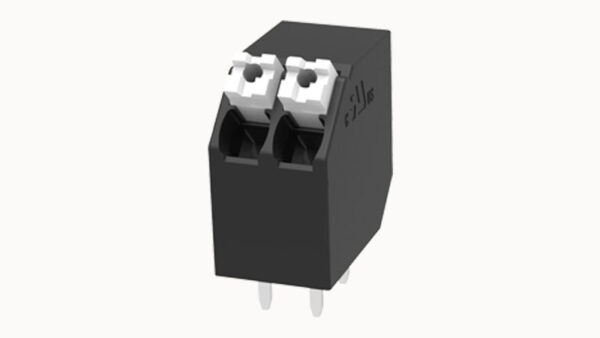

PCB Terminal Block Alternative to Degson

PCB Terminal Block Alternative to Degson Small Footprint Easy Wiring

Rated current:10A
Rated voltage:300 V
Pitch: 3.5mm

Add to quote

Product certification

Replacement Compatibility

  • General Type: 3.5mm pitch THR Fixed PCB Spring Block (Horizontal)
  • Alternative Models: DG212S-THR

Product Advantages

  • ☑ Horizontal wire entry (parallel to the PCB) for a very low profile.
  • ☑ Suitable for applications with severe height restrictions.
  • ☑ Designed for automated THR soldering processes.

Application Scenarios

  • Flat or slim electronic devices
  • LED lighting controls
  • Embedded systems

Connection capacity

Conductor cross section solid 0.2~1.5mm²
Conductor cross section flexible 0.2~1.5mm²
AWG 28~14AWG
Strip length 9mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 12A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 160V
Rated voltage(III/3) 160V
Rated current 17.5A
Rated voltage(III/2) 160V
Rated voltage(II/2) 320V
Rated surge voltage(III/3) 2.5KV
Rated surge voltage(III/2) 2.5KV
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 45°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Connection method Quick connection
Pitch 3.5mm
Number of potentials 2-24P
Pluggable or not no
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials High temperature resistant materials
Shell color Black
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC60947/UL1059





Environmental data

Ambient temperature (operation) -40℃~130℃(depending on derating curve)





Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 1.34
03P 1.87
04P 2.41
05P 2.94
06P 3.48
07P 4.01
08P 4.55
09P 5.08
10P 5.62
11P 6.15
12P 6.69
13P 7.22
14P 7.76
15P 8.29
16P 8.83
17P 9.36
18P 9.9
19P 10.43
20P 10.96
21P 11.5
22P 12.03
23P 12.57
24P 13.1
FS1.5-XX-350-14AOSI.pdf
PDF Download
