Home  >  Terminal Blocks  >  Spring Terminal Block  >  FS1.5-XX-750-03

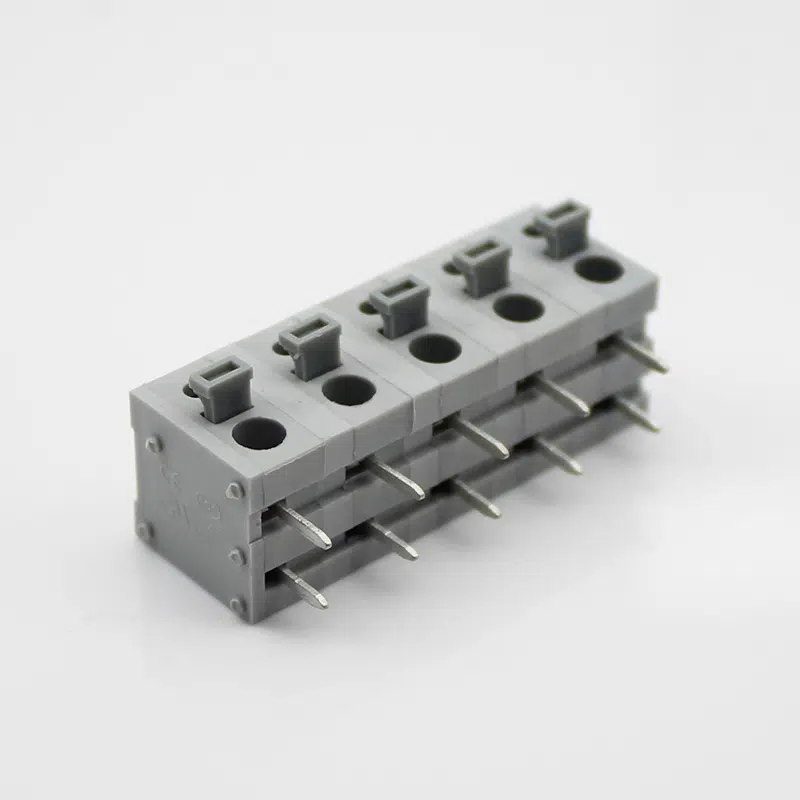

Push Button Terminal Block

Push Button Terminal Block Screwless Connection

Rated current: 10A
Rated voltage: 300 V
Wire range: 26-14AWG
Pitch: 7.5mm
Mounting: Wave soldering

Add to quote

Product certification

Replacement Compatibility

  • Functional Type: 7.5mm pitch Fixed PCB Spring Terminal Block (Angled)
  • Alternative Models: DG211R

Product Advantages

  • ☑ Angled entry offers a user-friendly and ergonomic wiring experience.
  • ☑ 7.5mm pitch is suitable for applications requiring higher power or voltage.
  • ☑ A reliable solution for field wiring in industrial environments.

Application Scenarios

  • Motor controllers
  • Fieldbus systems
  • Automation equipment

Connection capacity

Conductor cross section solid 0.2~0.5mm²
Conductor cross section flexible 0.2~0.5mm²
AWG 28~20AWG
Strip length 9mm





Electrical parameters UL

Rated voltage (B) 150V
Rated current (B) 5A





Electrical parameters lEC

Rated voltage 160V
Rated voltage(III/3) 160V
Rated current 3A
Rated voltage(III/2) 160V
Rated voltage(II/2) 320V
Rated surge voltage(III/3) 2.5KV
Rated surge voltage(III/2) 2.5KV
Rated surge voltage(II/2) 2.5KV





ltem properties

Connection direction 0°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Connection method Push-in spring connection
Pitch 7.5mm
Number of potentials 2-24P
Pluggable or not no
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC60947/UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Packing unit 500
MOQ 30
Weight (without packaging)

FS1.5-XX-750-03AOSI.pdf
PDF Download
