Overview of the PTFIX 2.5 mm² Distribution Block

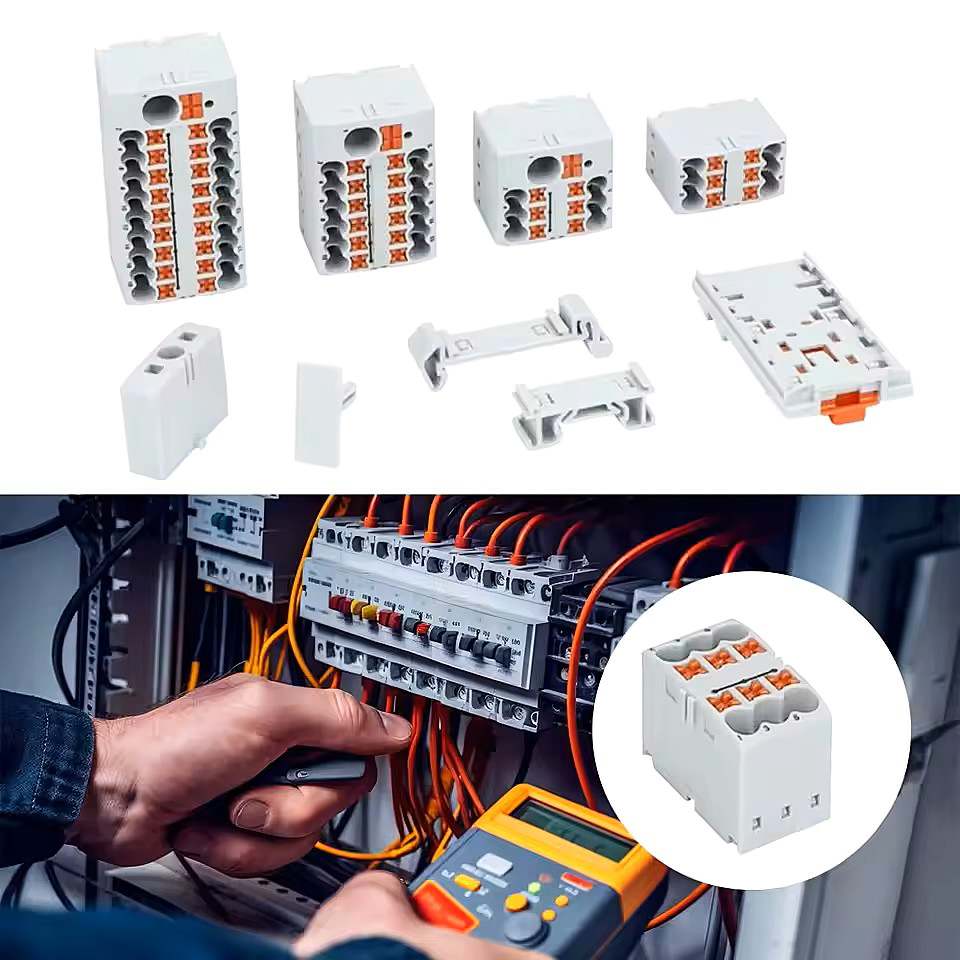

Il distribution block PTFIX 2.5 mm² series is a pre-assembled modular power node designed for fast, tool-free wiring in modern automation and control systems.
Each unit provides one power input and multiple outputs, ideal for distributing 24 V DC or low-voltage AC circuits in compact control panels.
Main Features:
- Conductor range: 0.5 – 2.5 mm² (AWG 20–14)
- Rated current: up to 24 A
- Rated voltage: 500 V AC/DC
- Push-in connection technology for tool-free installation
- Available in 4-, 6-, 12-, and 18-pole versions
Its plug-and-play design eliminates complex assembly, enabling installers to mount and wire immediately upon unpacking.
Push-in 2.5 mm² Connection Technology Explained
Push-in connection technology streamlines installation by enabling direct wire insertion without tools. Each PTFIX 2.5mm² terminal has a precision spring clamp, which holds the conductor tightly for stable, vibration-proof connections. This minimizes wiring time and ensures consistent assembly quality, even in high-density or hard-to-reach cabinets.
Vantaggi:
- No screwdrivers or torque tools required
- Faster wiring and rework (50–80 % time saving)
- Maintenance-free and safe under vibration
- Uniform clamping force for stable conductivity
Electrical Ratings and Current Capacity (Up to 24 A)
Il PTFIX 2.5 mm² distribution block delivers dependable electrical performance for industrial and building automation.
Typical Specifications:
| Parametro | Value |
| Nominal Voltage | 500 V AC/DC |
| Nominal Current | 24 A (max.) |
| Conductor Size | 0.5 – 2.5 mm² (AWG 20–14) |
| Tipo di connessione | Push-in Spring Clamp |
| Materiale dell'alloggiamento | PA66, UL94 V-0 flame-retardant |
| Mounting Method | DIN rail / adhesive mount |
The modules undergo strict electrical testing to meet UL, VDE, CE, and RoHS certifications, ensuring long-term safety and stability.
Explore AOSI Power Distribution Module Family
- This series follows the same plug-in concept as AOSI’s Power Distribution Module family, offering reliable current handling and modular connectivity for control and automation systems.
Compact Design for Space-Saving Control Cabinets
The modular power node PTFIX 2.5 mm² series is designed to maximize space efficiency in crowded cabinets. Its stackable form and color-coded terminals enable easy identification and fast deployment for multi-voltage systems.
Design Highlights:
- Slim profile reduces DIN-rail usage by up to 50 %
- Color coding simplifies neutral, ground, and phase distribution
- Ready-to-use modules require no bridging accessories
- Expandable layout allows horizontal or vertical arrangement
This makes PTFIX ideal for applications where dense wiring and modular scalability are essential — such as automation controllers, PLC enclosures, and lighting systems.
Integration with Modular Power Systems
The PTFIX series integrates seamlessly with other AOSI modules such as PTFIX, FIX, and KV series, allowing custom multi-channel distribution layouts.
Modules can be combined to handle different currents, voltages, or application zones within one cabinet.
For a detailed overview of multi-output power configurations, refer to → One In Multiple Out Junction Box.
FAQs — PTFIX 2.5 mm² Distribution Block
A1: A plug-in spliceable splitter guide rail is a modular solution designed for DIN rail installations. It allows users to add or remove splitter modules easily for efficient wiring changes. Each module can be joined or detached without tools, providing flexibility for upgrades, repairs, or expansion in automation and industrial control panels.
A2: Most plug-in rail systems comply with DIN standards for industrial reliability and safety. Leading brands also offer CE, UL, or RoHS certification, ensuring safe use in varied electrical and automation environments.
A3: Each module is clearly marked, often color-coded or labelled for channel identification. Faulty modules can be replaced individually without affecting other circuits. System expansion or upgrades also require minimal rewiring, cutting maintenance times and reducing error rates.
A4: Yes, plug-in splitter rails and modular blocks can route both power and low-voltage signals within the same cabinet. Choose appropriate models (fuse blocks, relay modules, etc.) based on current, voltage, and signal type for optimal performance.
Conclusione
Il Distribution Block PTFIX 2.5 mm² Series delivers a balance of speed, safety, and space efficiency for modern electrical installations.
With its push-in connection, 24 A current rating, and modular expandability, it’s the ideal solution for compact control and automation projects.
Partner with Elettronica AOSI for certified factory-direct distribution solutions tailored to your system requirements.
