Home  >  Terminal Blocks  >  Spring Terminal Block  >  FS1.5-XX-500-24

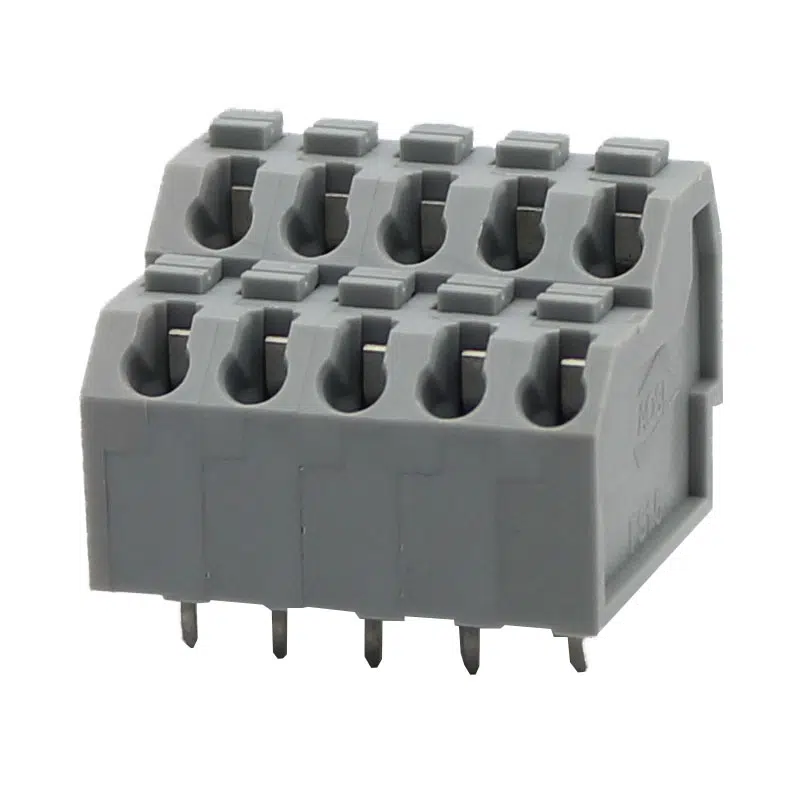

PCB Terminal Block compatible with Anytek

PCB Terminal Block compatible with Anytek Modular Mounting Compact Footprint

Rated current: 10A
Rated voltage: 300V
Wire range: 20-16AWG
Pitch: 5.0mm
Mounting: Wave soldering

Add to quote

Product certification

Replacement Compatibility

  • Functional Type: 5.0mm pitch Compact Fixed PCB Spring Block
  • Alternative Models: DG250T

Product Advantages

  • ☑ A compact and space-saving design with a standard 5.0mm pitch.
  • ☑ Top actuation point for easy wire termination with a screwdriver.
  • ☑ High-quality spring connection for long-term reliability.

Application Scenarios

  • Compact power supplies
  • LED drivers and controls
  • Consumer electronics

Connection capacity

Conductor cross section solid 0.2~1.5mm²
Conductor cross section flexible 0.2~1.5mm²
AWG 22~16AWG
Strip length 9mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 10A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 450V
Rated current 12A
Rated voltage(III/2) 450V
Rated power frequency voltage(1min) 2.5KV





ltem properties

Connection direction 45°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Connection method Push-in spring connection
Pitch 5mm
Number of potentials 2-24P
Pluggable or not no
Number of rows 2





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059/IEC60998





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 2.07
04P 3.9
06P 5.72
08P 7.56
10P 9.16
12P 10.99
14P 12.82
16P 14.65
18P 16.48
20P 18.31
22P 20.14
24P 21.97
26P 23.8
28P 25.63
30P 27.47
32P 29.3
34P 31.13
36P 32.96
38P 34.78
40P 36.62
42P 38.45
44P 40.28
46P 42.24
48P 44.07
50P 45.9
52P 47.72
54P 49.55
60P 55.03
68P 62.33
80P 73.29
96P 87.89
FS1.5-XX-500-24AOSI.pdf
PDF Download
