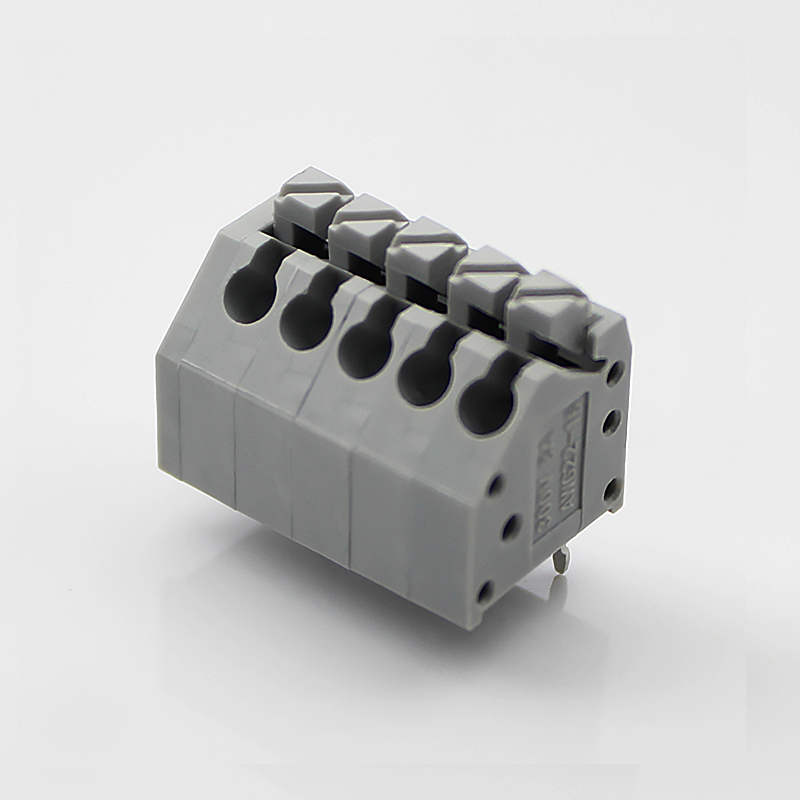

Spring Terminal Block

Spring Terminal Block CE Certified 3.5mm Pitch

Rated current: 5 A
Rated voltage: 300 V
Wire range: 22-18 AWG
Pitch: 3.5mm
Mounting: Wave soldering

Add to quote

Product certification

Replacement Compatibility

  • General Type: 3.5mm pitch Fixed PCB Spring Terminal Block
  • Alternative Models: DG250

Product Advantages

  • ☑ Compact 3.5mm pitch is a popular choice for signal and low-power connections.
  • ☑ Reliable cage-clamp spring connection provides secure, vibration-proof wiring.
  • ☑ Side-entry design for a low overall height on the PCB.

Application Scenarios

  • Industrial electronics
  • Building automation
  • Telecommunication devices
Connection capacity

AWG 6~250kcmil
Torque 6.0N.m




Electrical parameters lEC

Rated voltage 1000V





ltem properties

Connection direction 90°
Type of installation panel
Connection method Screw connection
Screwdriver Phillips screwdriver
screw thread M8
Pitch 3.5mm
Number of potentials 2-24P
Pluggable or not no
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface Nickel plating
Insulating material group Ⅲa
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059





Environmental data

Ambient temperature (operation) -40℃~120℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
01P 0.53
02P 0.87
03P 1.22
04P 1.55
05P 1.9
06P 2.23
07P 2.58
08P 2.91
09P 3.27
10P 3.6
12P 4.28
14P 4.96
16P 5.65
18P 6.33
20P 7.01
30P 10.43
FS1.5-XX-350-04AOSI.pdf
PDF Download
