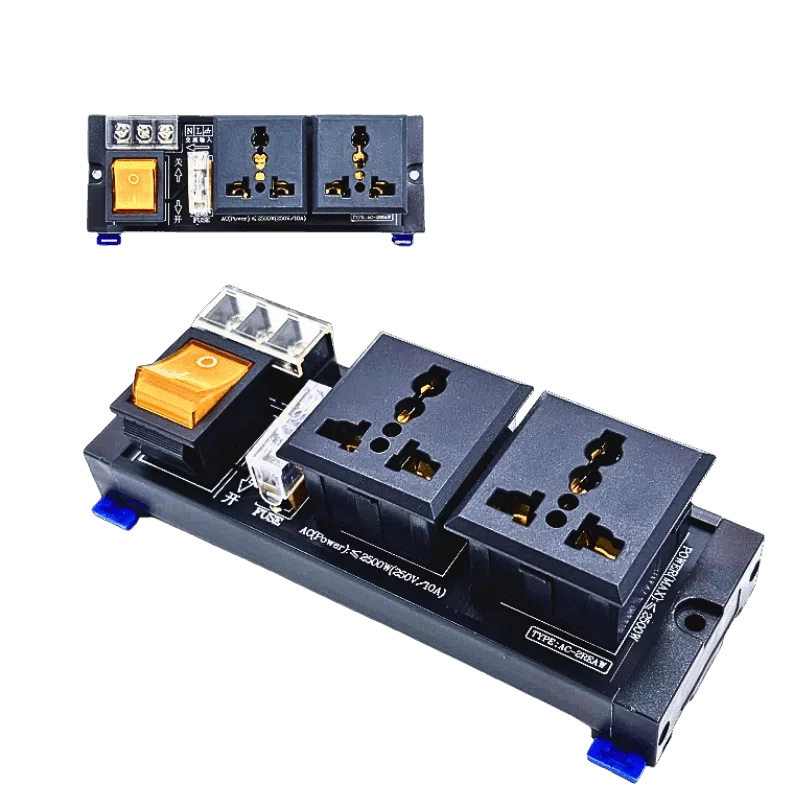

AC Socket Distribution Terminal Modules with Switch and Fuse Protection
Reliable AC 220V socket modules for industrial and testing use, available in 1 to 8 positions.
Built-in switches and fuses provide safe, modular AC distribution for multiple outputs.
The AC Power Socket Terminal Block Series is a compact modular solution for powering multiple AC devices safely and efficiently.
Each unit integrates 1 to 8 outlets, along with built-in switches and fuse protection, providing a stable and organized way to distribute AC 220V / 20A across instruments, tools, or control circuits.
Designed for industrial control panels, testing benches, and automation systems, these modules feature durable screw terminals for secure wiring and can be easily mounted on standard DIN rails or panels.The combination of power distribution and protection within one unit reduces wiring complexity while ensuring operational safety and convenience.
Key Features:
1–8 outlet options for flexible configuration
Built-in switch and fuse protection for each module
Rated for AC 220V / 20A operation
Screw terminals ensure stable and secure wiring
Compatible with standard DIN rail or panel mounting

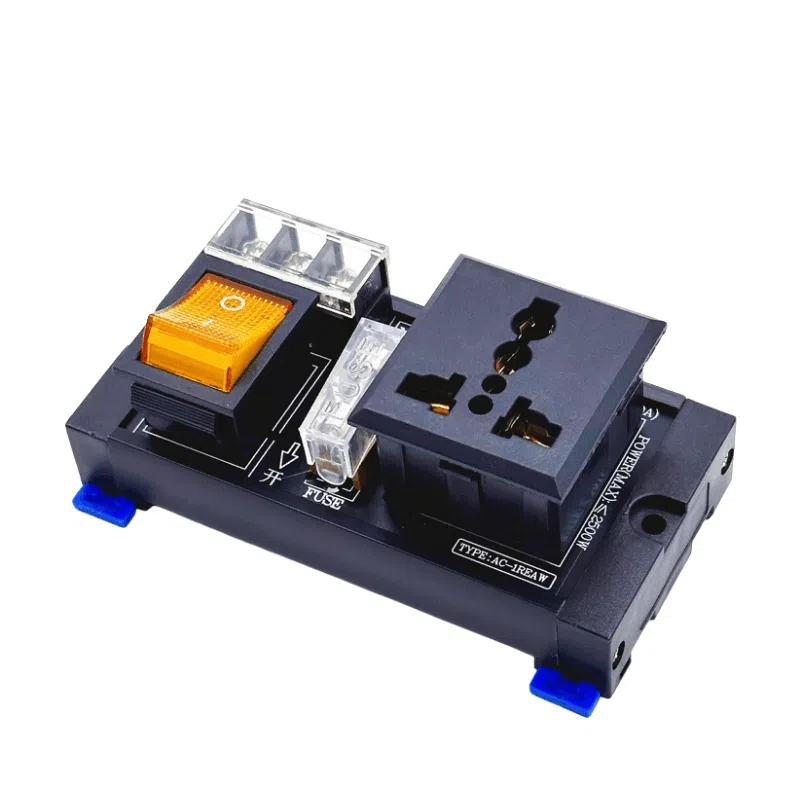

The AC Power Socket Terminal Block distributes and protects AC 220V power through a compact modular design that combines a switch, fuse, and output socket
1）Power Input & Isolation Switch
| Function | Description |
|---|---|
| 🔌 Input Terminals | L (Live) and N (Neutral) receive AC 220V power. |
| ⚙️ Switch | Dual-pole switch fully isolates or connects the power source for safe maintenance. |
| 💡 Indicator Light | Illuminates when power is on, turns off when disconnected. |
2）Fuse Protection Circuit
Each output line includes a 10 A fuse that prevents over-current or short-circuit damage.
📘 When a fault appears on one output, the fuse isolates the circuit without affecting others.
3）Output Distribution
Each socket delivers regulated AC power (up to 2 × 10 A per socket).
Output terminals use high-conductivity brass contacts for low resistance.
Screw connectors ensure tight contact and vibration resistance.
✅ Result: Safe power delivery, clear circuit isolation, and easy maintenance for industrial or lab systems.
The AC Socket Terminal Block Series offers consistent performance and safety for AC 220V / 20A applications.
All models feature modular housing, fuse protection, and screw terminal connections.
⚙️ Electrical Specifications
| Parameter | Description |
|---|---|
| Rated Voltage | AC 250 V |
| Rated Current | All channels must be ≤10A |
| Total Power | All channels must be ≤2500W |
| Fuse Rating | 10 A (each channel, replaceable) |
| Indicator Light | LED – Power ON/OFF status |
| Switch Type | 2-pole isolation switch |
| Connection Type | Screw terminals (cold-pressed terminals optional) |
🧩 Mechanical & Material Data
| Parameter | Description |
|---|---|
| Housing Material | Flame-retardant PA66 (UL94-V0) |
| Mounting Type | Panel or 35 mm DIN rail |
| Contact Material | Nickel-plated brass |
| Wire Range | 22–12 AWG / 0.5–6 mm² |
| Temperature Range | −40°C to +85°C |
The AC Power Socket Terminal Block provides a safe and modular way to distribute AC 220V power to multiple devices.
It is widely used across industrial, laboratory, and automation systems where organized wiring and circuit protection are essential.

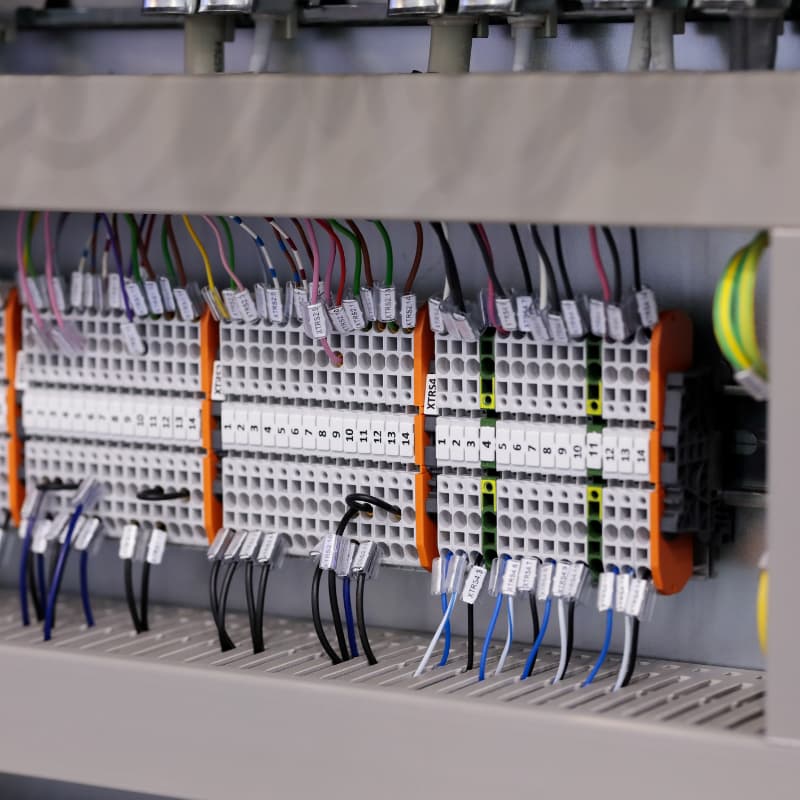

Used in factory automation and machine cabinets to power PLCs, sensors, and relays.The built-in switch and fuse allow technicians to isolate or reset circuits quickly during maintenance.
Provides multiple AC outlets for tools, instruments, and analyzers during product testing or calibration.
Each channel is fuse-protected to prevent overload when connecting different test devices.

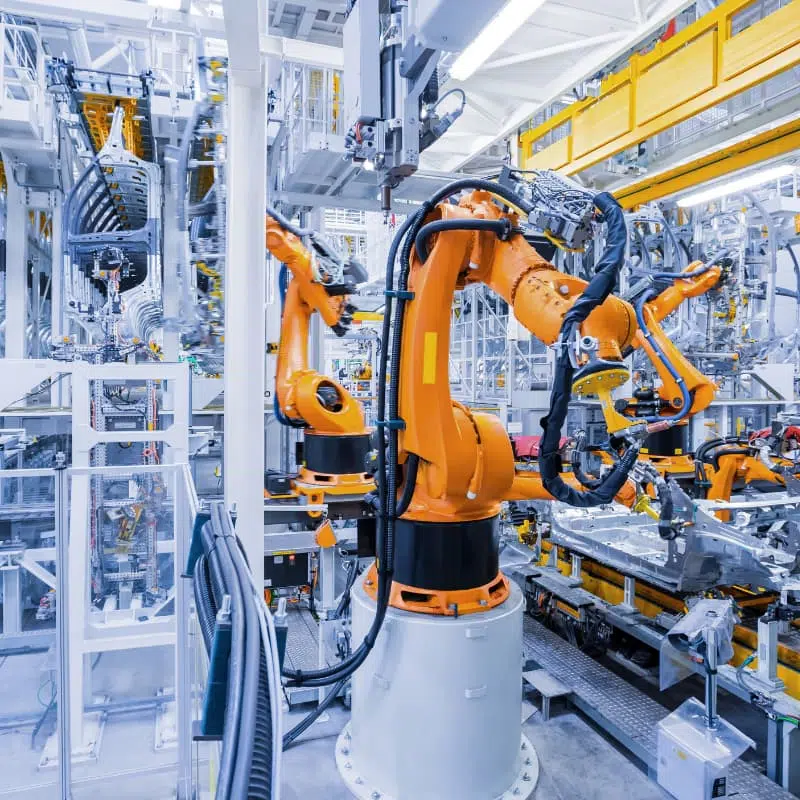

Delivers reliable AC power distribution to actuators, conveyors, and control systems.Compact DIN-rail installation keeps the wiring clean and minimizes downtime.

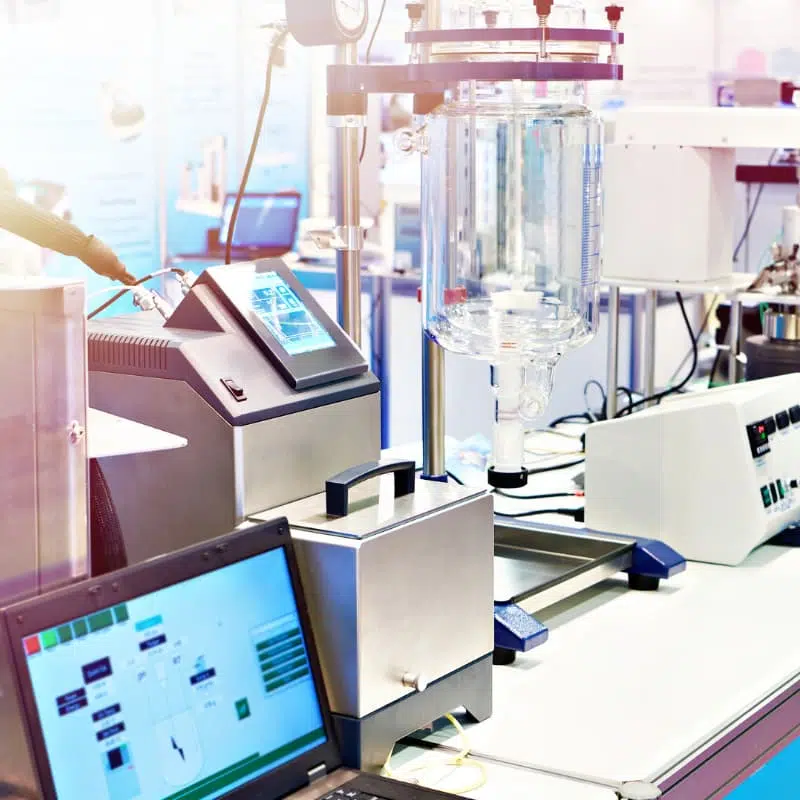

The AC socket terminal blocks are ideal for laboratory or calibration environments that require stable and flexible AC 220V power outputs.
Each outlet can be switched and fused individually, allowing safe testing of multiple instruments without circuit interference.
✅ Benefits at a Glance
| Feature | Description |
|---|---|
| 🔌 Modular Design | 1–8 outlets for flexible configuration |
| 🔒 Safety | Fuse and switch isolation per channel |
| 🧰 Easy Maintenance | Quick fuse replacement and visible status light |
| ⚡ Reliability | Stable contact, heat-resistant PA66 body |
With over 15 years of experience in terminal manufacturing, AOSI Electronics is a reliable partner for industrial and automation power solutions.
We provide complete in-house production—from plastic injection to assembly and testing—ensuring consistent quality and fast delivery for every project.
At AOSI Electronics, all our terminal blocks and connectors are rigorously tested and fully certified:
✅ UL, CE, RoHS, and REACH compliant
✅ 100% quality inspection before shipment
✅ Strict adherence to ISO 9001:2015 quality management standards
✅ Fireproof, high-temperature resistant, and vibration-tested designs for industrial environments
🔒 Reliable connection starts with certified components. We make no compromise when it comes to safety and compliance.
As a direct factory with over 15 years of experience in terminal block production, AOSI provides:
🔧 Over 30 injection molding machines
🧰 In-house tooling and mold design capabilities
👷 50+ skilled workers and 8 production lines
🚚 Monthly output over 5 million pieces
From prototyping to bulk delivery, we offer stable lead times, flexible MOQ, and consistent product quality.
Whether you are a distributor, system integrator, or OEM, AOSI is ready to support your growth:
🌐 Exporting to 40+ countries across Europe, Asia, and the Americas
🧩 Customizable options: pin count, logo, color, housing material, packaging
🤖 Engineering support for special pitch, modular block design, and high-current applications
📦 We speak your language: fast communication, drawings, samples, and global logistics support.
Looking for durable and CE-compliant AC socket terminal blocks for your industrial, automation, or testing applications?
AOSI Electronics provides 1 to 8 outlet AC power distribution modules with built-in switches and fuses — offering safe, efficient, and modular 220V outlet solutions.
Contact our engineering team today to get free samples or a personalized quotation for your next AC power system project.
An AC socket terminal block distributes AC 220V power to multiple devices safely. It integrates switches and fuses in one housing for organized wiring in control panels or test benches.
Yes. The AC socket distribution modules support both DIN-rail and panel mounting, providing flexible installation options for various control cabinet layouts.
Simply disconnect power, remove the fuse cover, and insert a new 10A fuse of the same rating. Each channel is independent, so replacement won’t affect other outputs
Each channel has an independent switch for circuit control and a 10A fuse for overload protection. This design allows safe isolation without shutting down the entire power line.
AOSI offers 1, 2, 4, 6, and 8-socket configurations, each with built-in switches and fuses for compact, modular AC power distribution.
You can purchase directly from AOSI Electronics, a professional AC terminal block manufacturer offering global shipping, technical support, and fast delivery for bulk orders.
