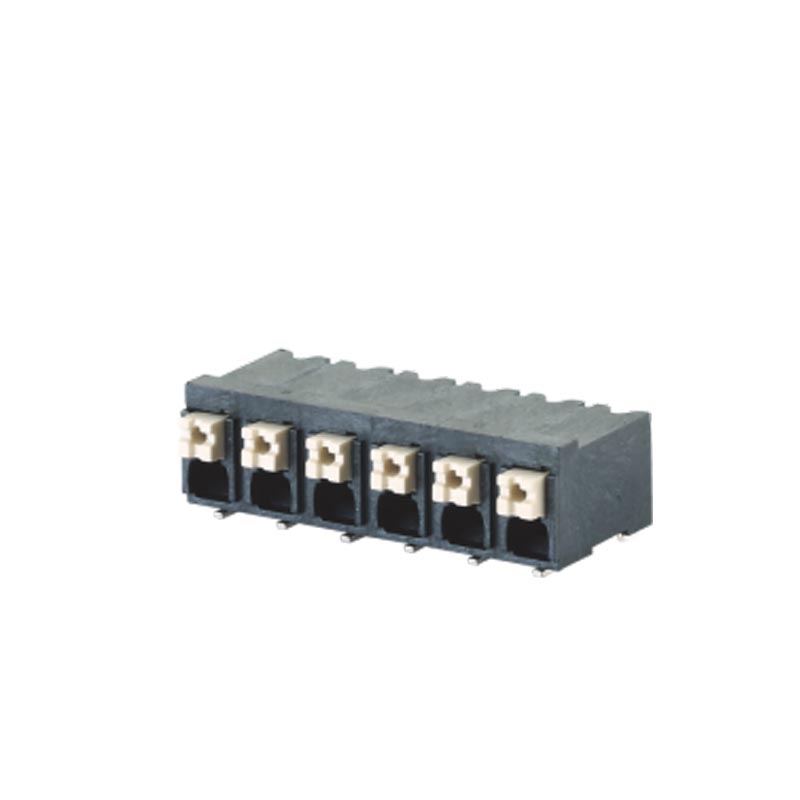

Push Button Terminal Block

Push Button Terminal Block Factory Direct 5.0mm Pitch

Rated current: 10 A
Rated voltage: 300 V
Wire range: 24-16 AWG
Pitch: 5.0 mm/5.08 mm
Mounting: Reflow soldering

Add to quote

Product certification

Replacement Compatibility

  • Series Description: 5.0mm pitch Fixed PCB Spring Block (Angled, Stackable)
  • Alternative Models: DG212R

Product Advantages

  • ☑ Side-by-side stackable design for building custom terminal blocks.
  • ☑ Angled entry for convenient and accessible wiring.
  • ☑ Provides a flexible solution for various PCB design requirements.

Application Scenarios

  • Creating custom-length terminal strips
  • Instrumentation panels
  • Industrial interface cards

Connection capacity

Conductor cross section solid 0.2~1.5mm²
Conductor cross section flexible 0.2~1.5mm²
AWG 28~14AWG
Strip length 9mm





Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 12A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 200V
Rated voltage(III/3) 200V
Rated current 17.5A
Rated voltage(III/2) 200V
Rated voltage(II/2) 320V
Rated surge voltage(III/3) 2.5KV
Rated surge voltage(III/2) 2.5KV
Rated surge voltage(II/2) 2.5KV





ltem properties

Type of installation PCB welding
Pin arrangement Double-row in a straight line
Connection method Push-in spring connection
Pitch 5mm
Number of potentials 2-24P
Pluggable or not no
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials High temperature resistant materials
Shell color Black
Flammability rating UL94V-0





Environmental data

Ambient temperature (operation) -40℃~125℃(depending on derating curve)
-40℃~130℃(depending on derating curve)
Ambient temperature (storage / transport) -40℃~70℃



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 1.08
03P 1.62
04P 2.16
05P 2.7
06P 3.24
07P 3.78
08P 4.32
09P 4.86
10P 5.4
11P 5.94
12P 6.48
13P 7.02
14P 7.56
15P 8.1
16P 8.64
17P 9.18
18P 9.72
19P 10.26
20P 10.8
21P 11.34
22P 11.88
23P 12.42
24P 12.96
FS1.5-XX-500-13SAOSI.pdf
PDF Download
