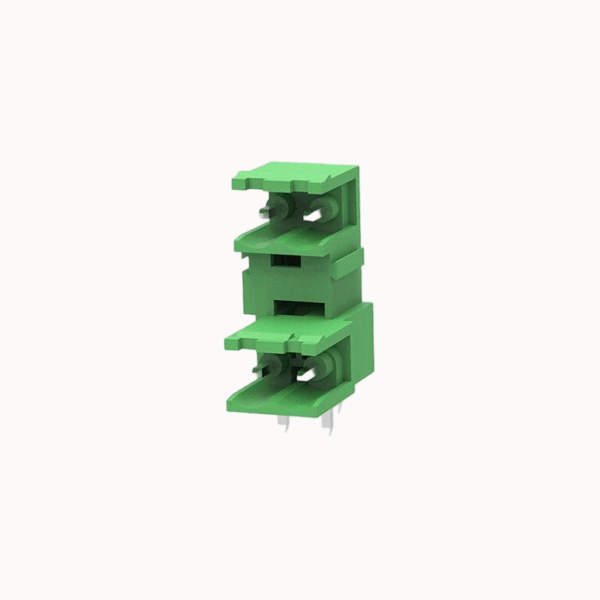

Compact Double Layer Plug in Block | Secure Locking System | FPH2.5-XX-500-16R

Compact Double Layer Plug in Block Secure Locking System

Rated current: 15A
Rated voltage: 300 V
Pitch: 5.0 mm

Add to quote

Product certification

Replacement Compatibility

  • Series Description: 5.0/5.08mm pitch Inverted Header (Angled)
  • Alternative Models: 2EDGRT

Product Advantages

  • ☑ Angled inverted header for creating low-profile, board-edge connections.
  • ☑ Mates with inverted plugs for a secure link parallel to the PCB.
  • ☑ A space-saving alternative to standard vertical header systems.

Application Scenarios

  • Low-profile interconnects
  • Edge-card style connections
  • Industrial computers


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 320V
Rated current 10A
Rated voltage(III/2) 320V
Rated surge voltage(III/2) 4KV





ltem properties

Connection direction 0°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Pitch 5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 2





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
04P 2.4
06P 3.63
08P 4.89
10P 6.05
12P 7.16
16P 9.74
18P 10.86
20P 12.03
24P 14.6
28P 17
FPH2.5-XX-500-16RAOSI.pdf
PDF Download
