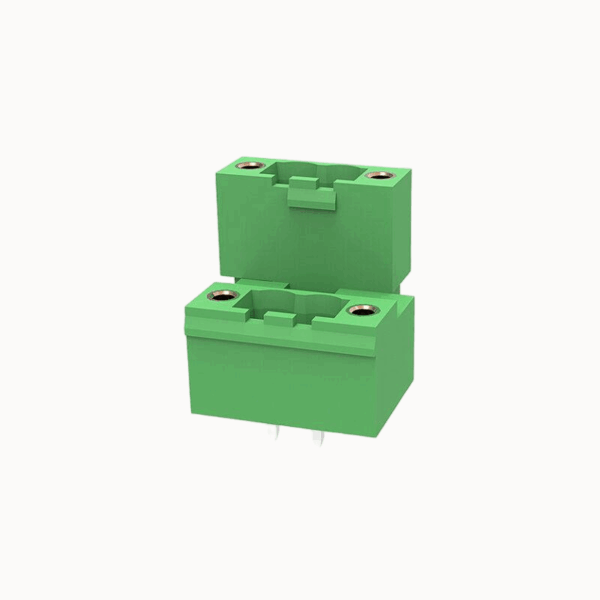

Double Layer Plug in Terminal Block | DIN Rail Mountable | FPH2.5-XX-500-18

Double Layer Plug in Terminal Block DIN Rail Mountable

Rated current:10A

Rated voltage （III/2）:320V

pitch:5.0mm

Color:green

Contact surface :Tin

Add to quote

Product certification

Replacement Compatibility

  • Series Description: 5.0/5.08mm pitch Inverted Header (Vertical with Screw Flanges)
  • Alternative Models: 2EDGVTM

Product Advantages

  • ☑ Screw flanges provide exceptionally strong mechanical anchoring to the PCB or panel.
  • ☑ Ensures the inverted header system is secure against heavy vibration and physical force.
  • ☑ A high-reliability solution for creating through-panel connections in harsh environments.

Application Scenarios

  • Heavy industrial equipment
  • Railway and mass transit systems
  • Ruggedized electronic devices


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 320V
Rated current 10A





ltem properties

Connection direction 90°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Pitch 5mm
Number of potentials 2-12P
Pluggable or not no
Number of rows 2





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
04P 5.19
08P 6.98
10P 7.62
12P 8.88
16P 10.42
20P 12.9
24P 14.2
