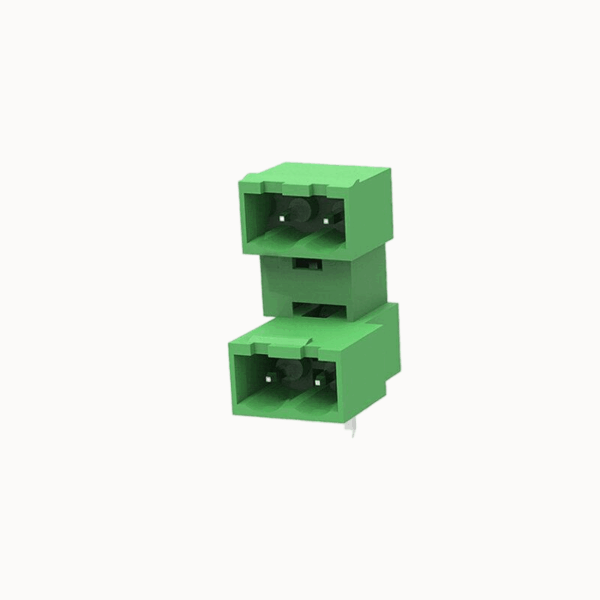

Double Stack Terminal Block | Compact Design | FPH2.5-XX-508-17R

Double Stack Terminal Block Compact Design

Rated current: 15A
Rated voltage: 300 V
Pitch: 5.08 mm

Add to quote

Product certification

Replacement Compatibility

  • General Type: 5.0/5.08mm pitch Inverted Header (Angled, Shrouded)
  • Alternative Models: 2EDGRTC

Product Advantages

  • ☑ Shrouded design protects the inverted pins from mechanical damage.
  • ☑ Angled orientation allows for low-profile connections parallel to the PCB.
  • ☑ A robust and reliable header for creating serviceable, board-edge connections.

Application Scenarios

  • Industrial computers
  • Power electronics interfaces
  • Low-profile pluggable systems


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 320V
Rated current 10A
Rated voltage(III/2) 320V
Rated surge voltage(III/2) 4KV





ltem properties

Connection direction 0°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Pitch 5.08mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 2





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
06P 4.06
08P 5.43
10P 6.75
12P 8.14
14P 9.52
16P 10.79
18P 12.19
20P 13.57
24P 16.2
30P 20.26
32P 21.58
34P 22.94
48P 32.5
