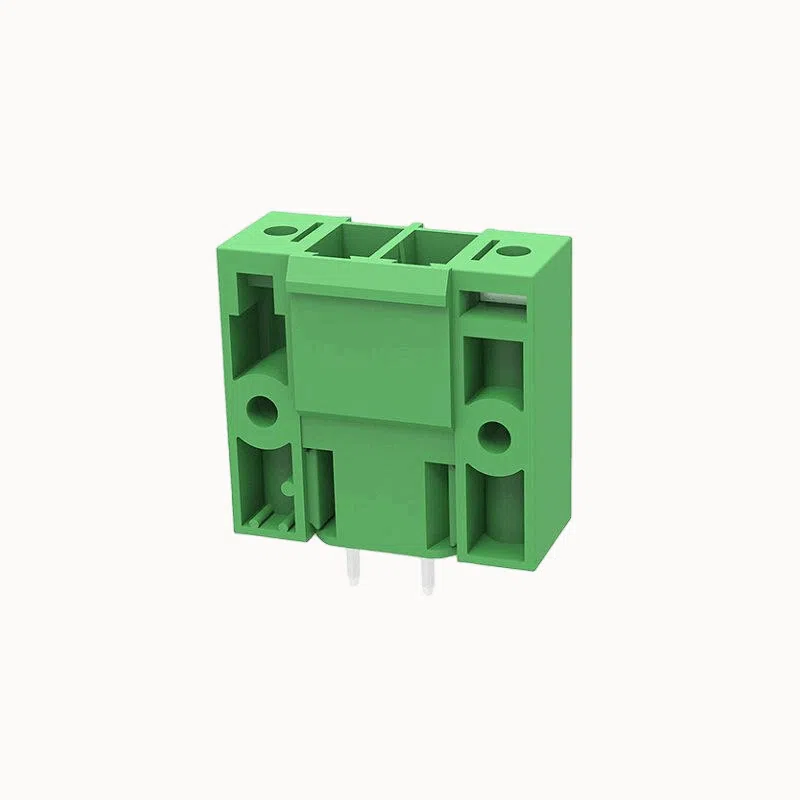

Male Pcb Connector | Panel Mount SuPort | FPM4-XX-762-04

Male Pcb Connector Panel Mount SuPort

Rated current:30A
Rated voltage (III/2):300V
pitch:7.62mm
Color:green
Contact surface :Tin

Add to quote

Product certification

Replacement Compatibility

  • Series Description: 7.62mm pitch High-Current Push-in Plug with mounting flange
  • Alternative Models: 5EDGVM

Product Advantages

  • ☑ Screw flanges provide a secure, vibration-proof connection to the device.
  • ☑ Ideal for protecting high-current connections from mechanical stress.
  • ☑ Fast Push-in wiring accelerates the assembly process.

Application Scenarios

  • Heavy-duty vehicle electronics
  • Industrial power interfaces
  • Railway applications


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A





Electrical parameters lEC

Rated voltage 250V
Rated current 7A
Rated voltage(II/2) 250V
Rated surge voltage(II/2) 2.5KV





ltem properties

Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 7.62mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact zone metal surface tin-plated
Insulation Materials PA66
Relative tracking index CTI 600V
Glow Wire Flammability Index GWFI 850
Shell color green
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 11.5
03P 14.08
04P 16.67
05P 19.25
06P 21.83
08P 26.99
10P 32.15
