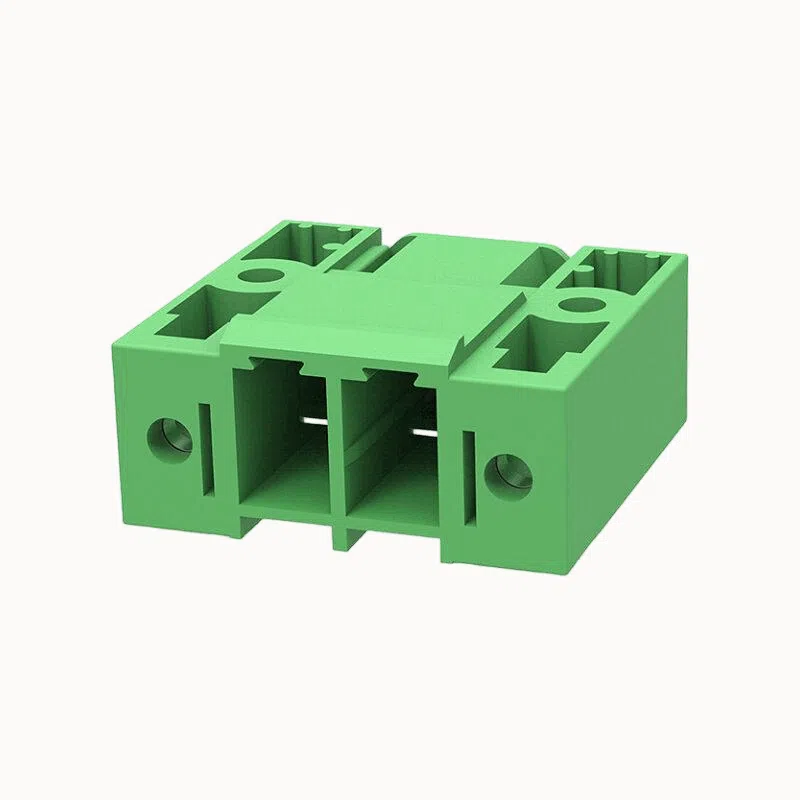

Male Plug in Terminal Block | High Current Rating | FPM4-XX-762-04R

Male Pcb Connector Panel Mount SuPort

Rated current:30A
Rated voltage (III/2):300V
pitch:7.62mm
Color:green
Contact surface :Tin

Add to quote

Product certification

Pitch Option: 5.00mm / 5.08mm

Vertical pluggable screw terminal block with closed sides.

Replacement Compatibility

  • Functional Type: 7.62mm pitch High-Current Push-in Plug with flanges and release levers
  • Alternative Models: 5EDGRM

Product Advantages

  • ☑ The ultimate combination of features: high current capacity, secure flange mounting, and tool-free release levers.
  • ☑ Provides maximum reliability and user convenience.
  • ☑ A top-tier choice for the most demanding power applications.

Application Scenarios

  • High-end industrial automation
  • Critical power systems
  • Robotics and motion control


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 8A
Rated current (D) 8A





Electrical parameters lEC

Rated voltage 250V
Rated current 7A
Rated voltage(II/2) 250V
Rated surge voltage(II/2) 2.5KV





ltem properties

Type of installation PCB welding
Pin arrangement Single row in a straight line
Pitch 7.62mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact zone metal surface tin-plated
Insulation Materials PA66
Relative tracking index CTI 600V
Glow Wire Flammability Index GWFI 850
Shell color green
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 11.15
03P 13.22
04P 15.29
05P 17.68
06P 20
07P 22.073
08P 24.143
09P 26.213
10P 28.28
