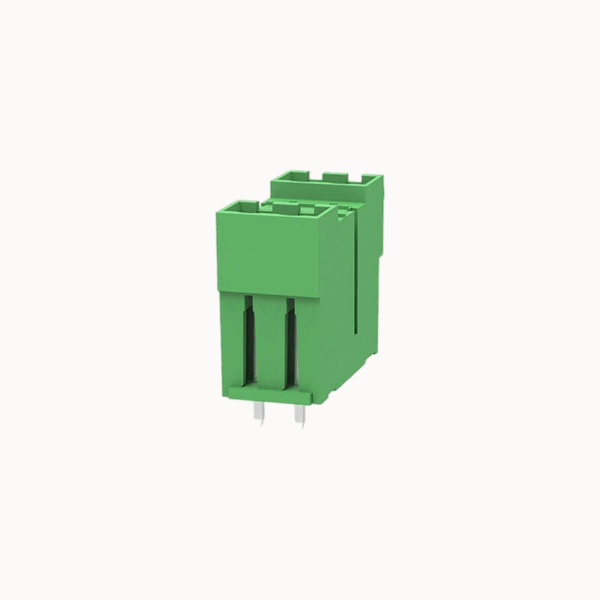

Stacked Pluggable Terminal Block | Dual Row Configuration | FPH2.5-XX-508-00

Stacked Pluggable Terminal Block Dual Row Configuration

Rated current: 15A
Rated voltage: 300 V
Pitch: 5.08 mm

Add to quote

Product certification

Replacement Compatibility

  • Functional Type: 5.08mm pitch Double-Level PCB Header (Vertical)
  • Alternative Models: 2EDGVH

Product Advantages

  • ☑ Doubles the connection density for standard 5.08mm pitch pluggable systems.
  • ☑ A space-saving solution for industrial applications with many I/O points.
  • ☑ Staggered pin layout can simplify PCB trace routing.

Application Scenarios

  • Industrial controllers
  • Automation modules
  • Power distribution units


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 10A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 400V
Rated voltage(III/3) 250V
Rated current 8A
Rated voltage(III/2) 400V
Rated voltage(II/2) 630V
Rated surge voltage(III/3) 4KV
Rated surge voltage(III/2) 4KV
Rated surge voltage(II/2) 4KV





ltem properties

Type of installation PCB welding
Pin arrangement Double-row in a straight line
screw thread M2
Pitch 5.08mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 2





Material data

Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Insulation Materials High temperature resistant materials
Glow Wire Flammability Index GWFI 850
Shell color Black
Insulating material group Ⅲa
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~120℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
04P 3.96
06P 5.92
08P 8
10P 10.47
16P 21.15
18P 23.96
20P 27.5
24P 33.50g
36P 46.50g
40P 53.13g
FPH2.5-XX-508-00AOSI.pdf
