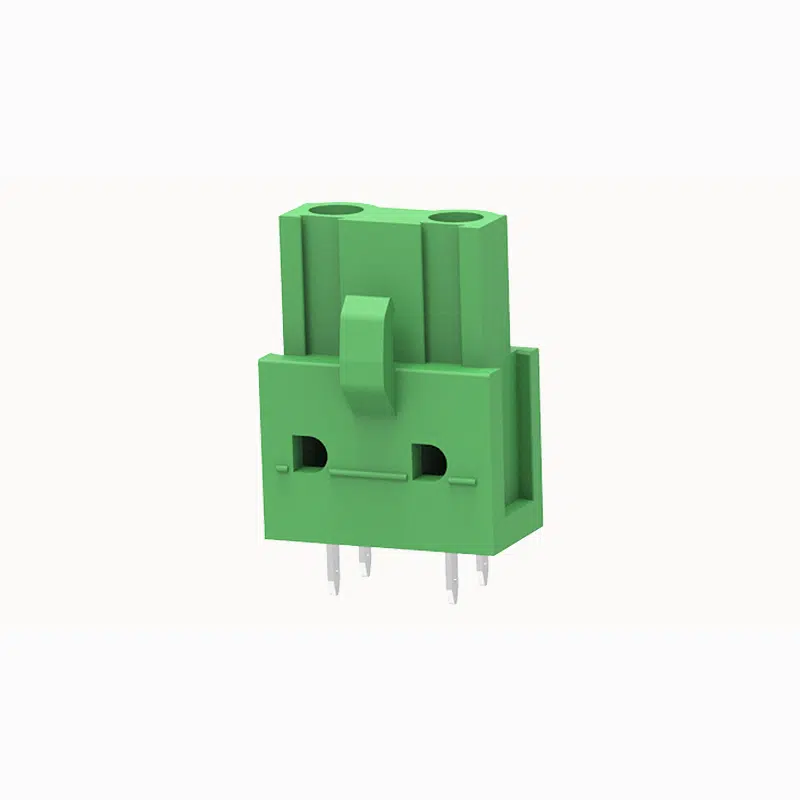

Modular Male Terminal Block | Tool-Free Insertion | FPM2.5-XX-762-07

Modular Male Terminal Block Tool-Free Insertion

Rated current: 15 A

Rated voltage: 300 V

Pitch: 7.62 mm

Mounting: Wave soldering

Add to quote

Product certification

Replacement Compatibility

  • Functional Type: 7.62mm pitch single position Push-in plug
  • Alternative Models: 2EDGB

Product Advantages

  • ☑ Modular single-pole design allows for custom groupings and color coding.
  • ☑ Ideal for creating flexible, application-specific connector configurations.
  • ☑ Perfect for use as test points or for single power line connections.

Application Scenarios

  • Test points for circuit boards
  • Modular power systems
  • Prototyping and custom designs


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 15A
Rated current (D) 15A





Electrical parameters lEC

Rated voltage 320V
Rated voltage(III/3) 320V
Rated current 20A
Rated voltage(III/2) 320V
Rated voltage(II/2) 630V
Rated surge voltage(III/3) 4KV
Rated surge voltage(III/2) 4KV
Rated surge voltage(II/2) 4KV





ltem properties

Connection direction 90°
Type of installation PCB welding
Pin arrangement Double-row in a straight line
Pitch 5mm
Number of potentials 2-12P
Pluggable or not Yes
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact zone metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification IEC61984/ UL1059





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 1.856
03P 2.841
04P 3.712
05P 4.583
06P 5.454
07P 6.325
08P 7.196
12P 11.551
FPM2.5-XX-762-07AOSI.pdf
PDF Download
