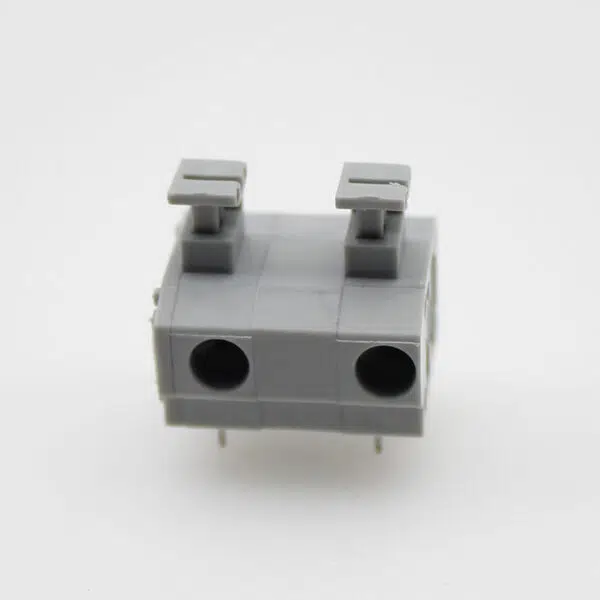

Spring Terminal Block

Spring Terminal Block 10mm Pitch for Large Current Distribution

Rated current: 5A
Rated voltage: 300V
Wire range: 22-18AWG
Pitch: 10.0mm
Mounting: Wave soldering

Add to quote

Product certification

Pitch Option: 5.00mm / 5.08mm

Vertical pluggable screw terminal block with closed sides.

Replacement Compatibility

  • General Type: 10mm extra-wide pitch Fixed PCB Spring Block with Test Port
  • Alternative Models: DG235T-10.0

Product Advantages

  • ☑ Extra-wide 10mm pitch provides maximum voltage rating and safety clearance.
  • ☑ Front-entry design for convenient wiring and testing from the same direction.
  • ☑ A robust and reliable choice for high-power industrial applications.

Application Scenarios

  • High-voltage power supplies
  • Solar power inverters
  • Drive technology


Electrical parameters UL

Rated voltage (B) 300V
Rated voltage (D) 300V
Rated current (B) 10A
Rated current (D) 10A





Electrical parameters lEC

Rated voltage 300V
Rated current 10A
Rated voltage(III/2) 300V
Rated surge voltage(III/2) 4KV





ltem properties

Type of installation PCB welding
Pin arrangement Double-row of misalignment
Connection method Push-in spring connection
Pitch 10mm
Number of potentials 2-24P
Pluggable or not no
Number of rows 1





Material data

Environmental items Compliant with REACH/RoHS
Contact material Copper alloy
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0





Mechanical tests

Test Specification UL1059/IEC60998





Environmental data

Ambient temperature (operation) -40℃~105℃(depending on derating curve)



Brand AOSI
Packing unit 100
Minimum order quantity 50
Products weight(g):
02P 1.98
03P 3.1
08P 8.73
FS1.5-XX-1000-06AOSI.pdf
PDF Download
